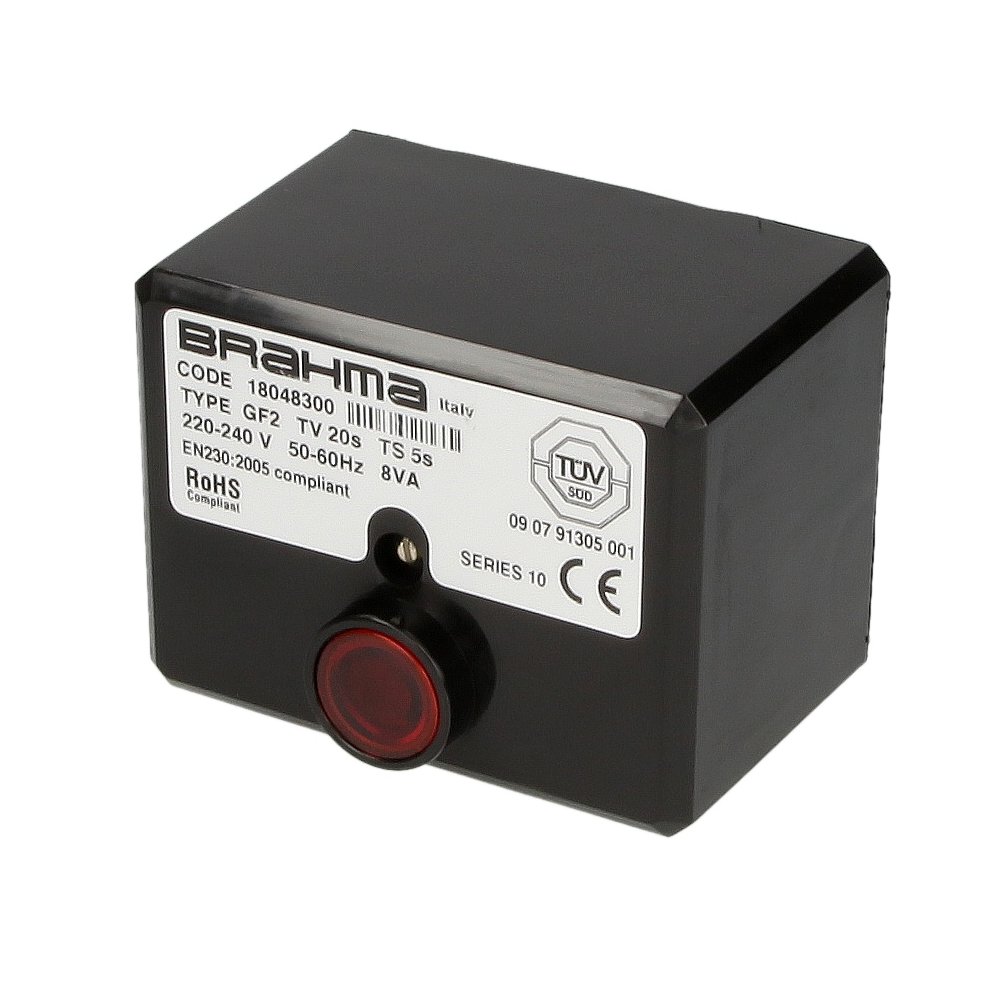

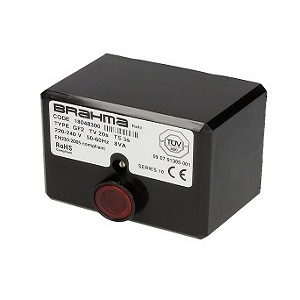

GF2 - Oil Burner Control

Type: GF2

Photocells: FC7, FC8

Power supply: 220-240V 50-60 Hz

Pre-purge time (TV): 10s

Brand: Brahma, Italy

Stock: 1-2 pcs (subject to availability)

Stock picture: Available on request

Price: Available on request

Application

The electro-mechanial controllers of this series are designed to control oil burners in non-permanent applications.

These controllers are suitable for:

- monoblock burners

- power washers

- hot air generators

- steam boilers

- furnaces

Due to the models technical and constructive features and to their variety they can be used also for the automation of cookers, and of plants employing oil burners generally, whether in domestic or industrial applications. These controllers replace integrally the 03 electro-mechanical series.













Power supply: 220-240V 50-60 Hz

Pre-purge time (TV): 10s

Safety time (TS): 10s

Operating temperature: -10...+60 °C

If you have any questions about this product please email us at saadwaheed09@gmail.com
