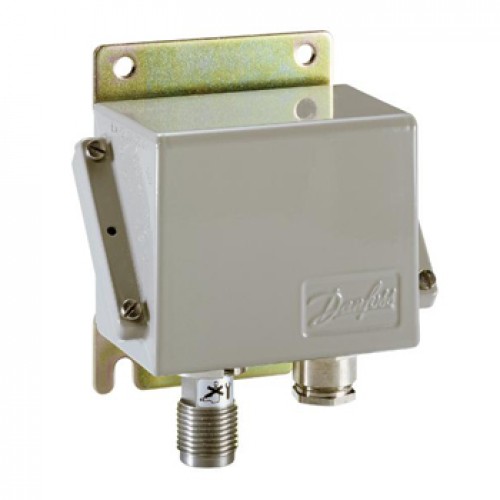

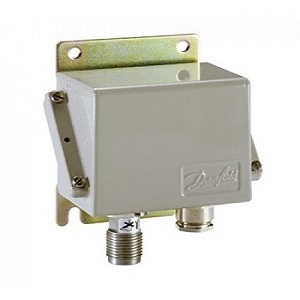

EMP-2 084G2211 - Pressure Transmitter

Type: EMP-2

Code: 084G2211

Pressure connection size: G 3/8

Operating pressure: 0 - 16 bar

Output signal: 4 - 20 mA

Supply: 24 V DC

Origin: Made in Denmark

Condition: Lotted (pictures available on request)

Stock: Subject to availability

Price: Available on request

EMP 2 Pressure Transmitters

Pressure transmitters type EMP 2 convert pressure to an electrical signal.

This is proportional to, and linear with, the value of the pressure to which the pressure-sensitive element is subjected by the medium. The units are supplied as two-wire transmitters with an output signal of 4-20 mA.

The transmitters have a zero-point displacement facility for equalizing static pressure. Span adjustment is also possible. The EMP 2 series can be used for continuous measurement of liquid, steam or gas pressure.

The transmitters are designed for monitoring and control in marine and industrial applications. They have all necessary marine approvals.




























EMP 2 - 084G2211

Pressure range: 0 - 16 bar

Overload pressure: 32 bar (max.)

Pressure unit reference: Gauge (relative)

Output signal: 4 - 20 mA

Supply voltage: 11 - 32 V DC

Pressure connection size: 3/8

Pressure connection standard: EN 837

Pressure connection type: G

Pressure Male/Female: Male

Enclosure rating: IP67

Code no.: 084G2211

Gross weight: 1.06 kg

For more information on technical data, please see data sheet.
