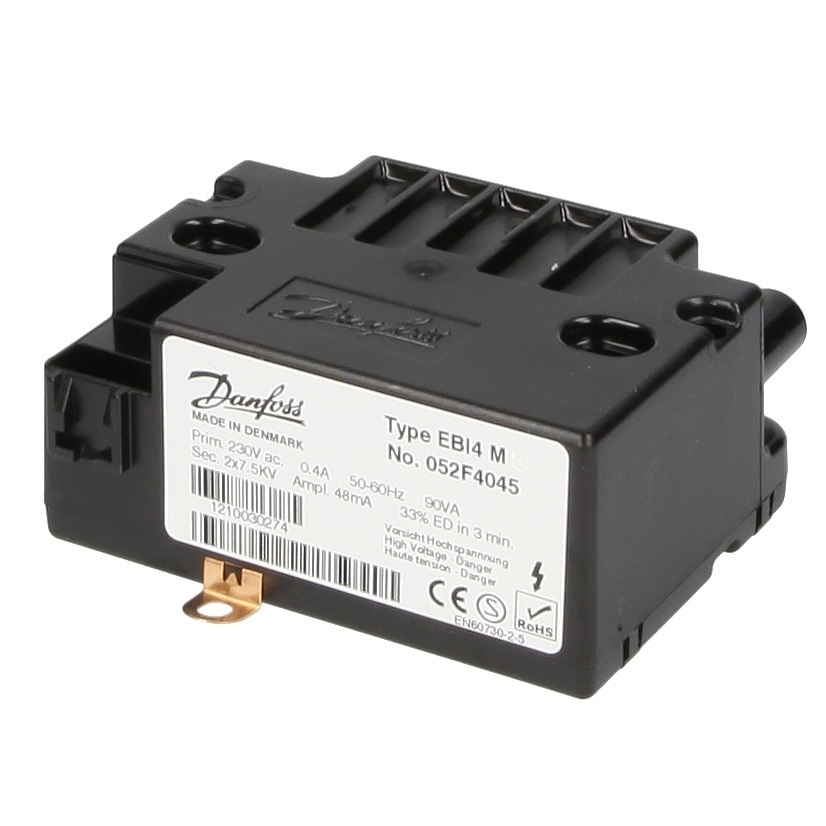

Electronic ignition unit EBI4 M

Code no. 052F4038

Primary : 230 V 50/60 Hz

Secondary : 2 x 7.5 kV Ampl. 40mA

Stock: Subject to availability

Price: Available on request

Note: Supplied with primary side cable. Ignition cables need to be ordered separately.

EBI4 Series Electronic Ignition Units

The EBI4 series is electronic ignition units for intermittent ignition between 2 electrodes or 1 electrode and frame in small and medium size oil or gas burners.

Low weight and small dimensions, due to high frequency operation, makes the EBI4 series very suitable for use in modern compact burners.

Connections with a plug on the primary side and bushes on the secondary side make installation and service quick and simple.


Applications and Features

• 1- or 2-pole ignition

• Low power consumption due to high efficiency (new technology)

• Complies with the RoHs and WEEE directives

• EMC according to EN 55014-1 and EN 55014-2

• Earth connection through the primary cable

• Same dimensions and flexible mounting as the well-known EBI series


EBI4 M

• Oil/gas burners

• 2-pole ignition

• 33% ED at 60 °C

• 230 V


EBI4 M

Mains connection: 230 V - 0.25 A - 50/60 Hz - 60 VA

Working range: 187 - 255 V

Main fuse: max. 10 A

Secondary connection*: 2 x 7.5 kV amp.

Short circuit current: 40 mA (rms)

Frequency: 20 kHz

ED in 3 minutes (cutting in): 33% at 60 °C

Ambient temperature: -10°C to +60 °C

Storage temperature: -25°C to +85 °C

Enclosure: IP 40 (Not for secondary connections)

EMC (Generic Standard): Emission EN 55014-1, Immunity EN 55014-2

Primary connection: 3 x 0.75 mm² cable with special plug

Secondary connections: 2 x Ø4 mm plugs

Earth connection: Through the primary cable

Distance between electrodes: Recommended 2.5 mm to 5.0 mm

Weight: 235 g

*Avoid use of divergent electrodes due to risk of electrical cable break down and too high ignition voltage.
