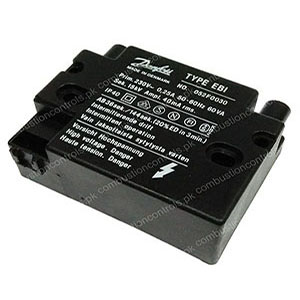

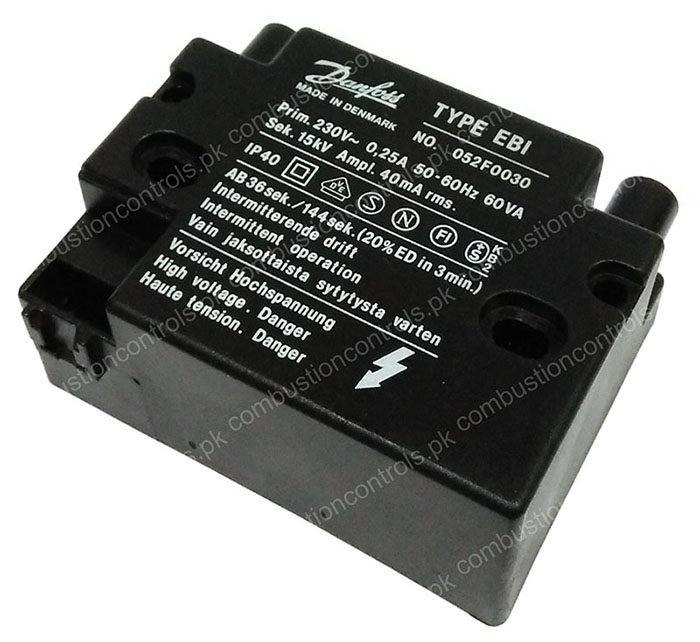

EBI Series Electronic Ignition Unit
The EBI series is electronic ignition unit for intermittent ignition between 1 or 2 electrodes in oil or gas burners.
Low weight and small dimensions, due to high frequency operation, makes the EBI series very suitable for use in modern compact burners.
Connections with a plug on the primary side and bushes on the secondary side make installation and service quick and simple.
Applications and Features
Oil/gas burners in general
2-pole ignition
Double insulated
33% ED at 60 °C
Top connection for secondary cables
230 V version
EBI Technical Data
Mains connection: 230 V - 0.25 A - 50/60 Hz - 60 VA
Working range: 187 - 255 V
Main fuse: max. 10 A
Secondary connection*: 15 kV amp.
Short circuit current: 40 mA (rms)
Frequency: 20 kHz
ED in 3 minutes (cutting in): 20% at 60 °C
Ambient temperature: -10°C to +60 °C
Storage temperature: -25°C to +85 °C
Enclosure: IP 40 (Not for secondary connections)
EMC (Generic Standard): Emission EN 55014-1, Immunity EN 55014-2
Primary connection: 3 x 0.75 mm² cable with special plug
Secondary connections: 2 x Ø4 mm plugs
Distance between electrodes: Recommended 2.5 mm to 5.0 mm
Weight: approx. 300 g
*Avoid use of divergent electrodes due to risk of electrical cable break down and too high ignition voltage.
For more information on technical data, please see data sheet.
If you have any questions about this product please email us at saadwaheed09@gmail.com
