Technical description

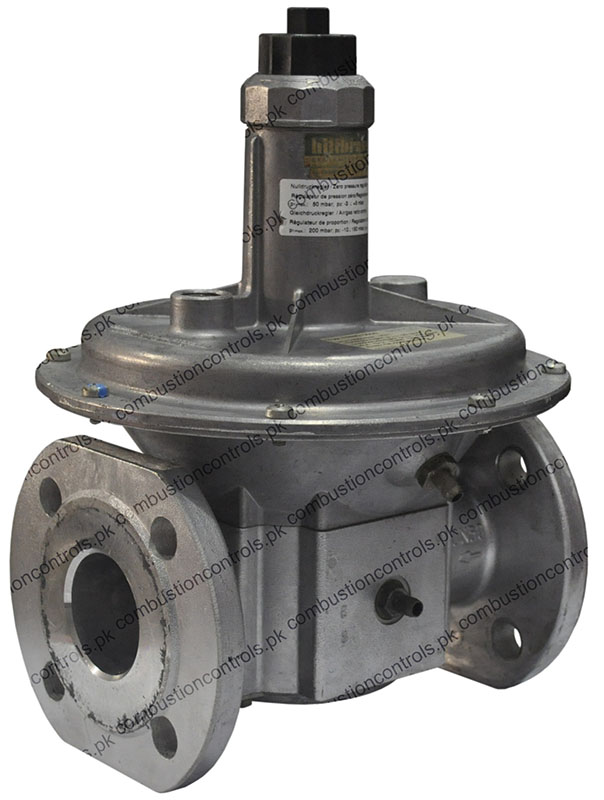

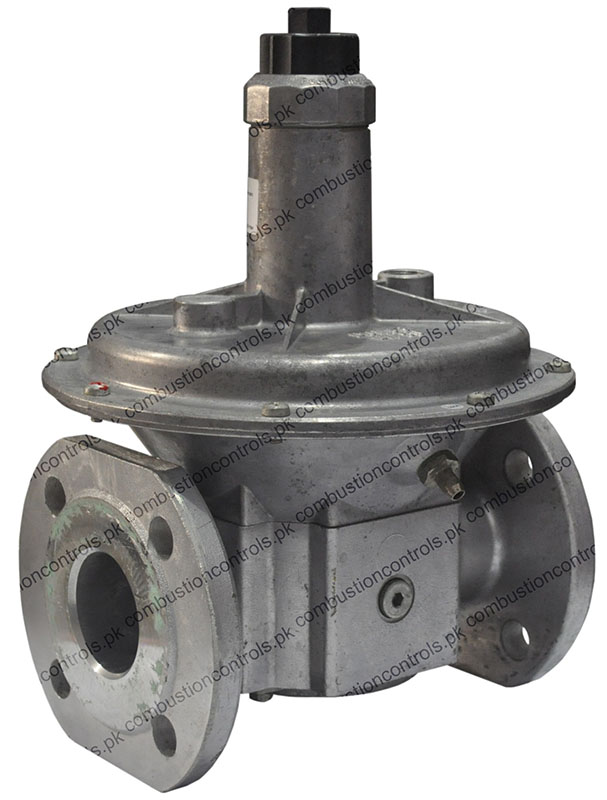

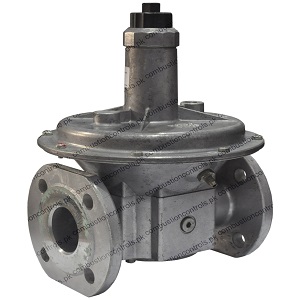

The DUNGS pressure regulator, type FRNG, has an adjustable setpoint spring and defined counterspring. The pressure regulator complies with EN 88 and DIN 3380:
Input pressures up to 50 mbar (5 kPa) for zero pressure applications
Input pressures up to 200 mbar (20 kPa) for proportional pressure applications
Bypass prepared
Sturdy, precise and sensitive regulation of regulator output pressure
Inlet pressure compensation diaphragms
Safety diaphragms
Internal pulse for regulator output pressure as standard, external pulse connection prepared
Connection for blower pressure as standard
Nominal diameter DN50, flange connection as per DIN EN 1092-1
Application
The DUNGS pressure regulator, type FRNG, is suitable for gases of families 1,2,3 and other neutral gaseous media. Does not contain any non-ferrous metals, suitable for gases of up to max. 0.1 vol.% H2S, dry.
FRNG
Spring-loaded pressure regulator with adjustable setpoint spring and defined counter spring. Internal tap of regulator output pressure, external pulse and blower pressure connections prepared. Suitable for controlling regulator output pressure via a pneumatic command variable.
Specifications
Nominal diameter: DN 50
Flange: Connection flange per DIN EN 1092-1
Max. operating pressure: up to 500 mbar (50 kPa)

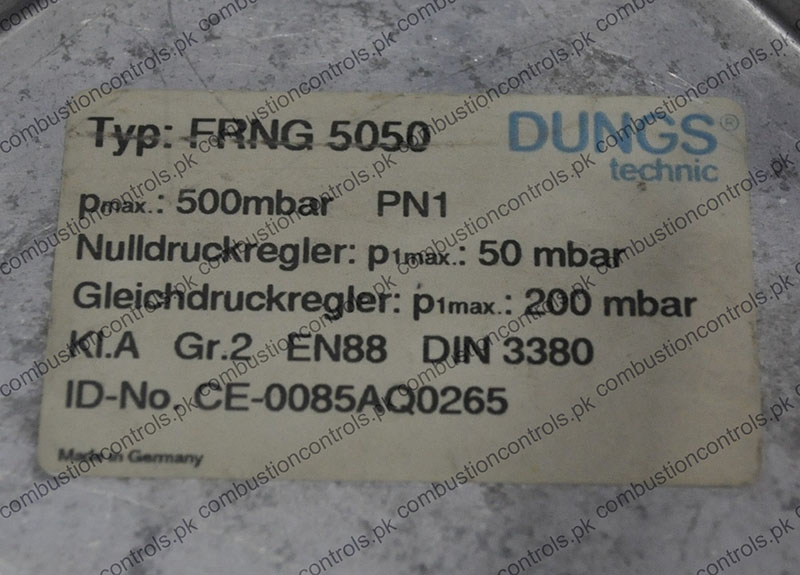

Pressure regulator: Pressure regulator as per EN 88, Class A, Group 2, DIN 3380, RG 10, EN 12078

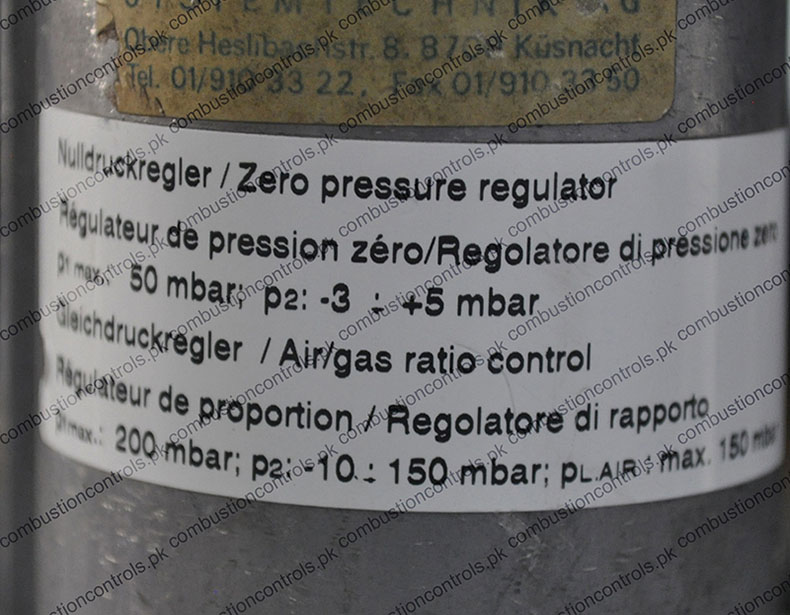

Input pressure range (Zero pressure regulator): 5 to 50 mbar (0.5 to 5 kPa)
Input pressure range (Proportional pressure regulator): 5 to 200 mbar (0.5 to 20 kPa)
Input pressure range (compressed air-controlled pressure regulator): to 500 mbar (50 kPa)
Output pressure range (Zero pressure regulator): - 3 to 5 mbar (-0.3 to 0.5 kPa)
Output pressure range (Proportional pressure regulator): - 10 to 150 mbar (-1 to 15 kPa)
Output pressure range (with compressed air): Pressure with compressed air up to max. 350 mbar (35 kPa)
Materials of gas conveying parts:
Housing: Aluminium, steel, no non-ferrous metals
Seals and diaphragm: NBR
Ambient temperature: -15 °C bis +70 °C
Installation position: Regulator dome from vertically upright to lying horizontally
Measuring/ignition gas connections: G 1/4 ISO 228 on both sides in inlet section
Measurement opening: G 1/8 ISO 228 in the baseplate. Reclosable opening for setting system specific values when the system is put into operation, e.g. gas motor
Weight: 5.290 kg
If you have any questions about this product please email us at info@combustioncontrols.pk
