Technical description

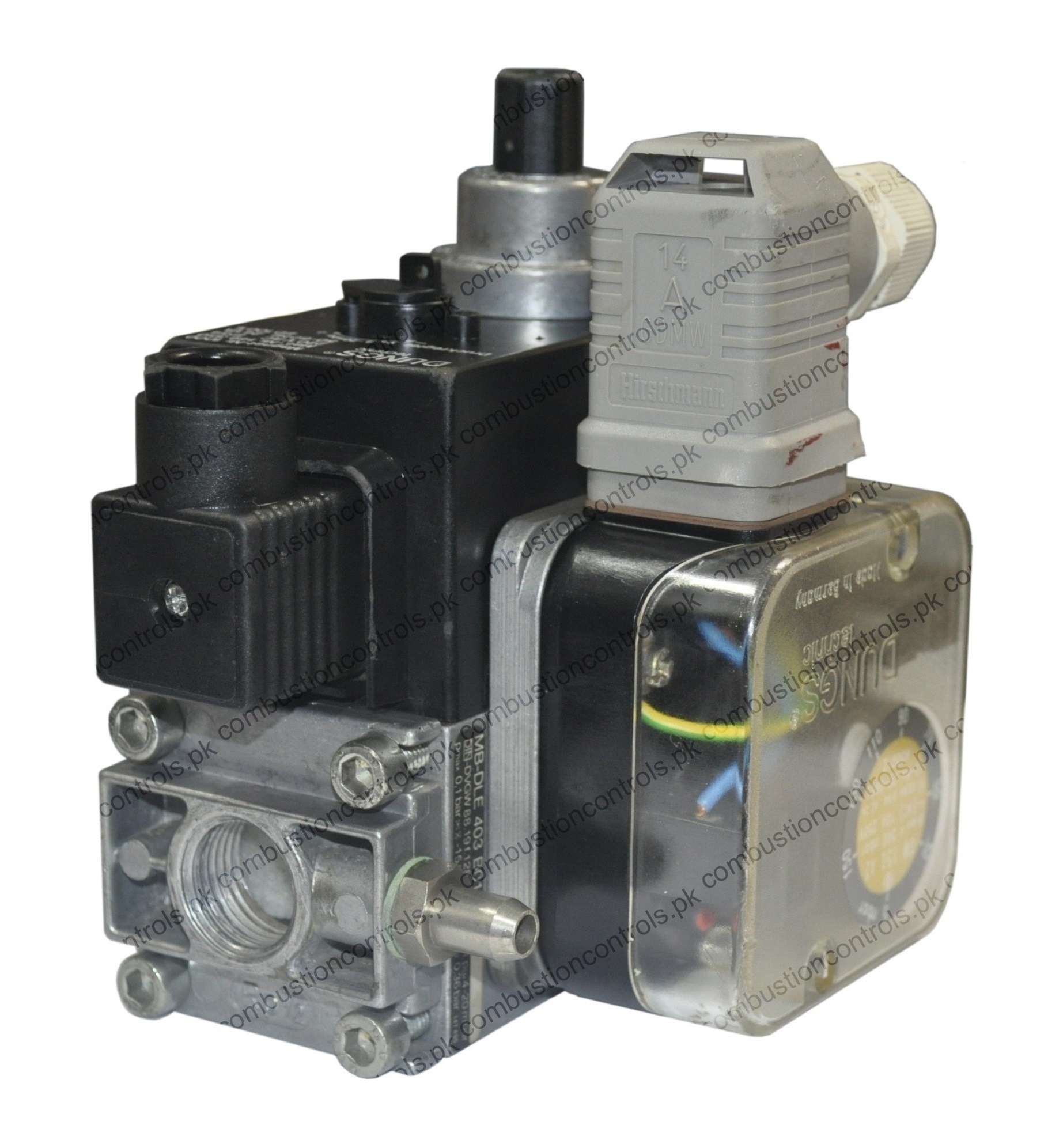

The DUNGS GasMultiBloc integrates filter, regulator, valves and pressure switches in one compact fitting.
Dirt trap: microfilter
One regulator and two main valves: B01
One valve is fast opening, one valve is slow opening
Sensitive setting of output pressure by proportional regulator as per DIN EN 88 Class A Group 2
High flow rates with low pressure drop
DC solenoid drive interference degree N
Main volume restrictor at valve V2 (MB-DLE)
Hydraulic opening delay
Flange connections with pipe threads as per ISO 7/1
Simple mounting, compact, light weight
Application
The modular system permits individual solutions in gas safety and regulator engineering. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
Specifications
Nominal diameter: Rp 1/2 flange with pipe threads as per ISO 7/1
Max. operating pressure: 100 mbar (10 kPa)
Inlet pressure: 360 mbar (36 kPa)
Output pressure ranges: 4 - 20 mbar (0.4 - 2 kPa)
Media: Gases of families 1, 2, 3 and other neutral gaseous media
Ambient temperature: -15 °C to +70 °C (Do not operate MB-D below 0°C in liquid gas systems)
Pressure switch: GW 150 A2
Solenoid valve V1: Valve as per DIN EN 161 Class A Group 2, fast opening, fast closing
Solenoid valve V2: Valve as per DIN EN 161 Class A Group 2, fast closing, slow opening, with main volume restrictor
Voltage / frequency: 220 VAC 50/60 Hz
Magnet Nr.: 1000
Mat.-Nr.: 149 350
Rating / power consumption: 24 VA
