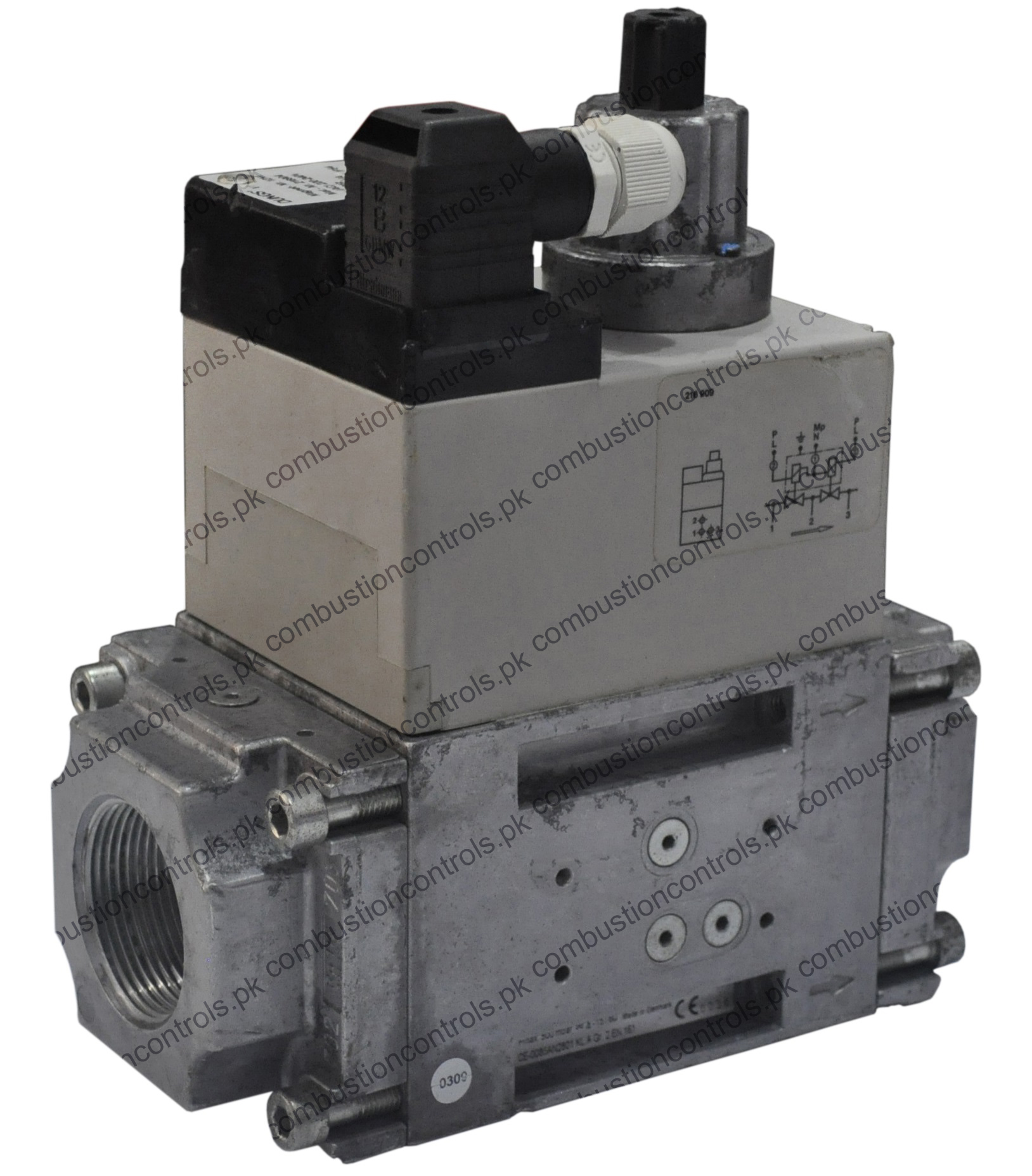

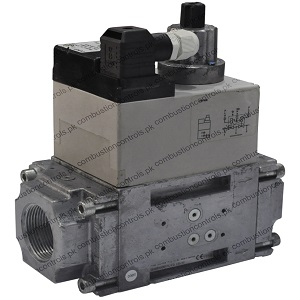

Dungs Double Solenoid Valve
DMV-DLE 512/11 Rp1-1/2 220VAC 50/60Hz

Type: DMV-DLE 512/11

Nominal diameter: Rp1-1/2

Max. operating pressure: 500 mbar (50 kPa)

Brand: DUNGS, Germany

Condition: Lotted

Stock: Subject to availability

Price: Available on request

Technical description

The DUNGS double solenoid valve DMV integrates two solenoid valves in one compact fitting.

  • Automatic shut-off valves as per DIN EN 161 Class A Group 2
  • Two A valves in one housing
  • Double seat valves
  • High flow rates
  • Max. operating pressure up to 500 mbar (50 kPa)
  • Fast closing and slow opening with adjustable fast stroke for start gas volume
  • Adjustable main volume
  • DC solenoid
  • Mountable closed position signal contact
  • Threaded flange
  • Compact, light weight

    • Application

    Double solenoid valves are used where two single valve were mounted previously. In connection with DUNGS gas regulators and additional components, a wide variety of regulating tasks can be performed.


    Specifications

    Nominal diameter: Rp 1-1/2

    Max. operating pressure: 500 mbar (50 kPa)

    Closing time: < 1 s

    Opening time: approx. 20 s at room temperature +20°C and without fast stroke

    Housing material: Aluminium, steel, no non-ferrous metals

    Ambient temperature: -15 °C to +60 °C

    Voltage/frequency: 220-240 VAC 50/60 Hz

    Order No.: 222 337

    Rating: 65 VA

    Solenoid No.: 1211

    If you have any questions about this product please email us at info@combustioncontrols.pk
