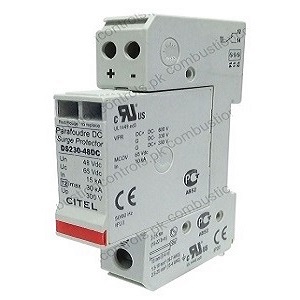

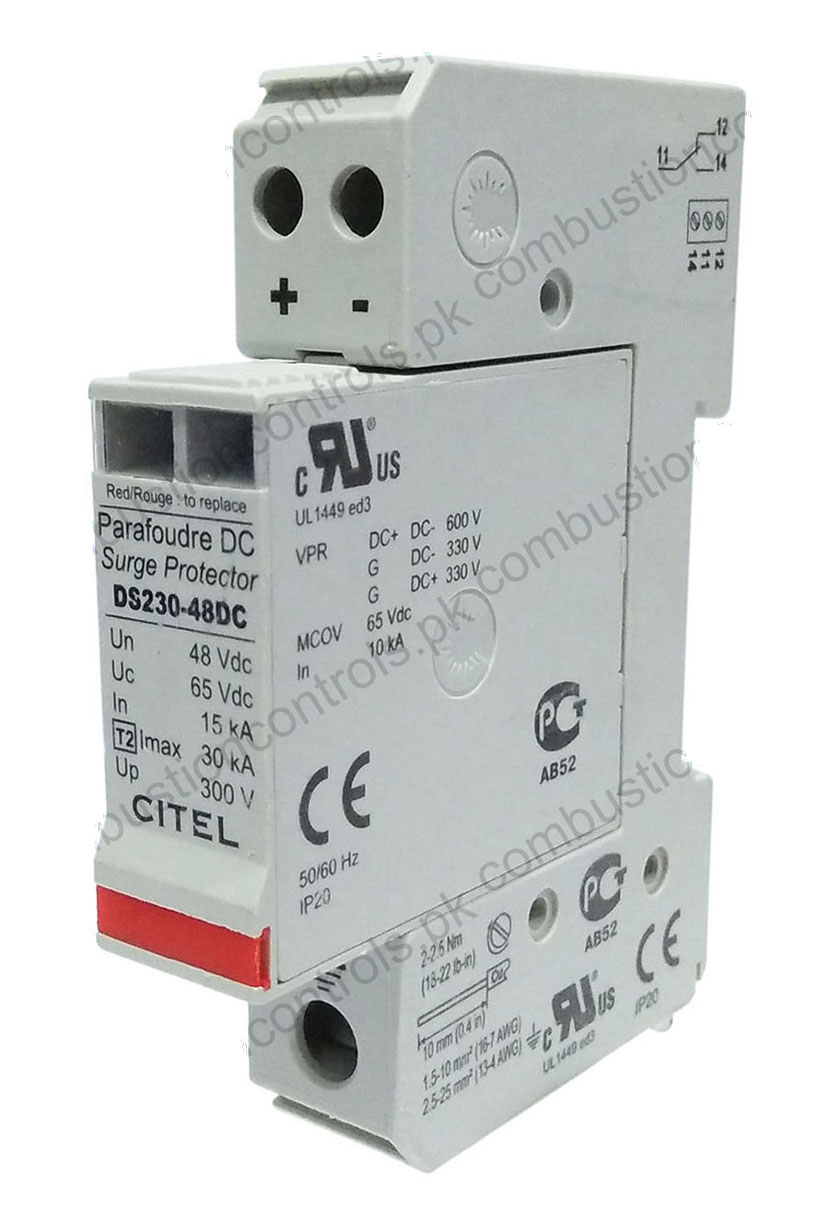

DS230-48DC - Citel Surge Protector

Type: DS230-48DC

DC operating voltage: 48 Vdc

Maximal discharge current: 30 kA

Brand: Citel (France)

Stock: Subject to availability

Price: Available on request

Location: Brands > Citel > DS230-48DC

Surge Protector for PV Offgrid Locations
  • Type 2 DC or AC Power Surge Protector
  • Imax: 30 kA at 8/20 μs
  • DC voltage 48 Vdc
  • AC voltage 50 Vac
  • Slim 18 mm Form Factor
  • Individual Fault Indicator Windows
  • UL 1449 3rd Edition Recognized


















    • Nominal DC voltage (Un): 48 Vdc

    Maximum DC operating voltag (Uc): 65 Vdc

    Maximum AC operating voltag (Uc): 50 Vac

    Nominal discharge current (In): 15 kA

    Maximal discharge current (Imax): 30 kA

    Operating temperature: -40° ... +85°C

    For more information on technical data, please see data sheet.








    If you have any questions about this product please email us at saadwaheed09@gmail.com
