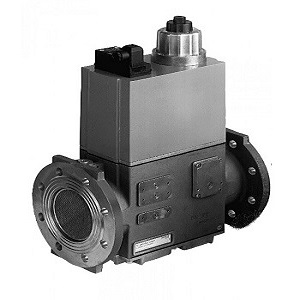

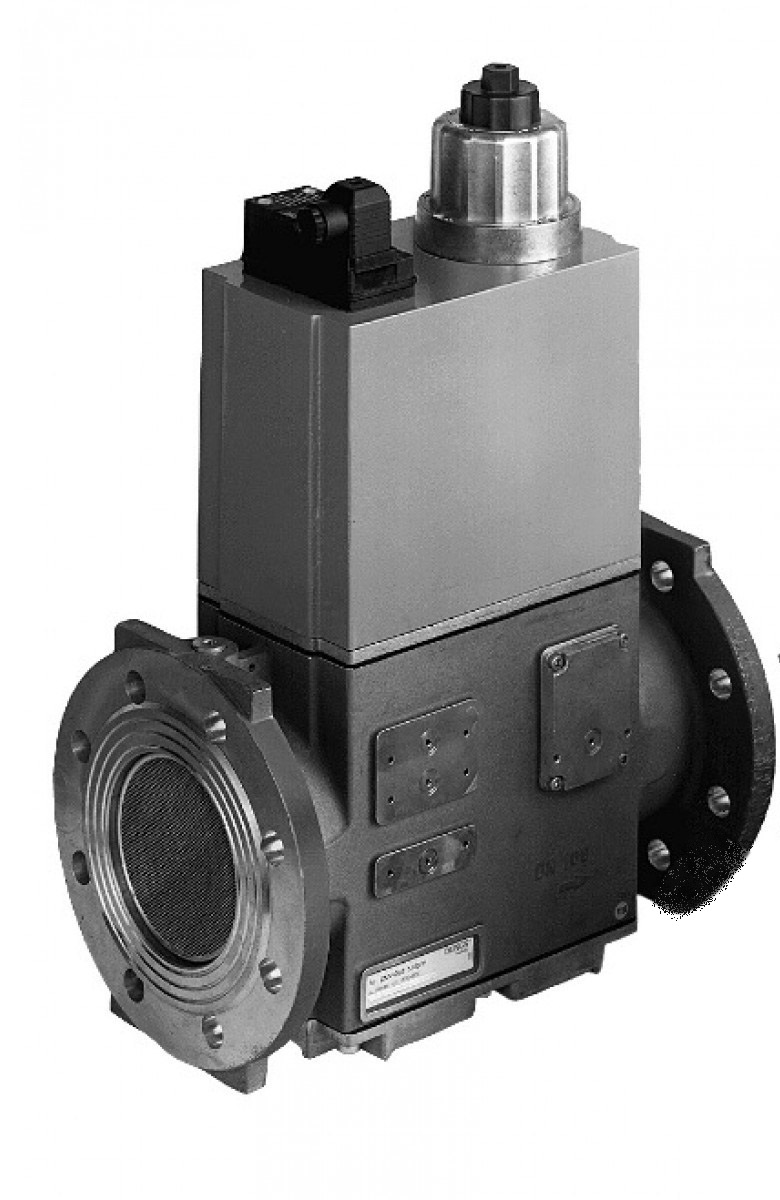

DMV-DLE 5080/11 110V - Dual Modular Valve

Type: DMV-DLE 5080/11

Flange size: DN 80

Max. operating pressure: 500 mbar (50 kPa, 7 psi)

Voltage: 110-120 VAC (50/60 Hz)

Mat.-Nr.: 222587

Brand: DUNGS, Germany

Condition: New

Stock: Subject to availability

Price: Available on request

Description

The DUNGS Dual Modular Valve (DMV) combines two safety shutoff valves in one compact housing, which can be wired independently or in parallel.


Application

The DUNGS DMV is recommended for industrial and commercial heating applications that require two safety shutoff valves. The DMV Dual Modular Valve is suitable for dry natural gas, propane, butane, air and other inert gases. Suitable for up to 0.1% by volume, dry H2S.


DMV-DLE.../11

Two normally closed safety shutoff valves in one housing. V1 fast opening, fast closing. V2 is slow opening, fast closing. Adjustable max. flow and adjustable initial lift with V2.


Specifications

Flange size: DN 80

Max. operating pressure: 500 mbar (50 kPa, 7 psi)

Max. body pressure: 1000 mbar (15 psi)

Max. close off pressure: 500 mbar (7 psi)

Electrical rating: 110-120 VAC (50/60 Hz)

Operating time: 100 % duty cycle

Closing time: < 1s

Opening time: (see data sheet)

Ambient temperature: -15 °C to +60 °C

Installation position: Solenoid in upright vertical to horizontal position

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
