DM330 - Autodi Electric Actuator

Type: DM330-2NM2R4SQ

Position control: 2

Rotation: Clockwise

Shaft Type: Quadrilateral - Hole Type

Mains voltage: AC 220...240 V / 50-60Hz

Running time for 90°: 4 seconds

Torque: 5 Nm

Brand: Autodi, Korea

Condition: Used (pictures available on request)

Motor cover: Included

Stock: Subject to availability

Price: Available on request

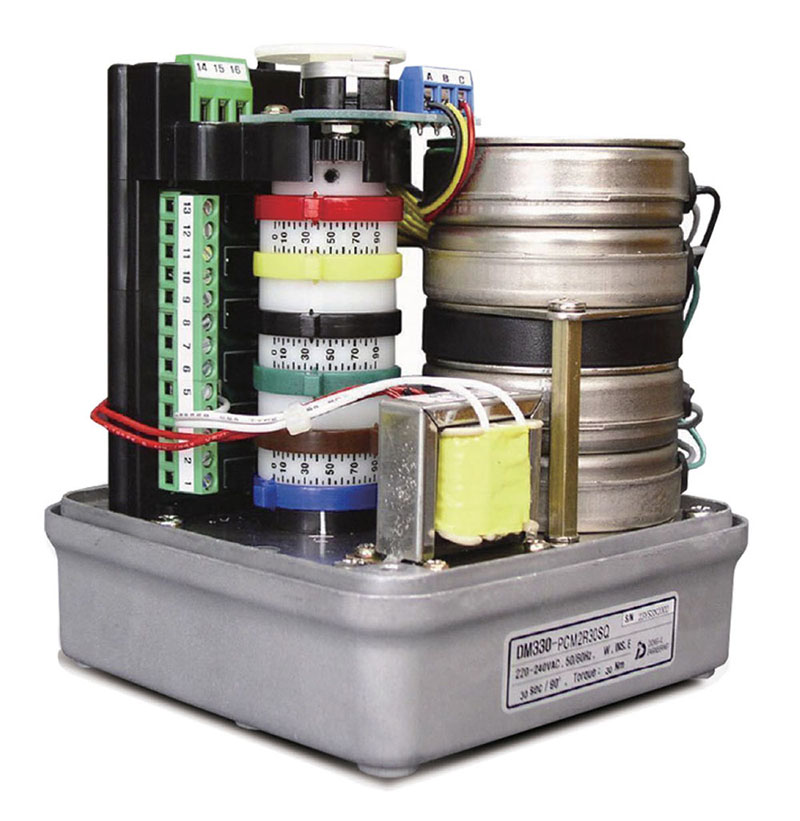

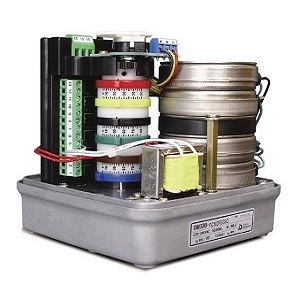

DM330 Series

The DM330 series damper motor consists of an electronic circuit for controlling the motor drive, a control unit consisting of 6 cams, and a reduction gear unit. The electronic circuit is composed of 2, 3, 4 position control or proportional control, and the reduction gear unit consists of two powerful synchronous motors and spur gears.























Technical data

Position control: 2

PC-Borad Type: Standard Type

Synchronous motor size: Double size motor, coupled

Sense of rotation: Right turn - clockwise - R

Shaft Type: Quadrilateral - Hole Type

Mains voltage: AC 220...240 V / 50-60Hz

Electric power: 36 W (2 A)

Running time for 90°: 4 seconds

Torque: 5 Nm

For more information on technical data, please see data sheet.





















If you have any questions about this product please email us at saadwaheed09@gmail.com
