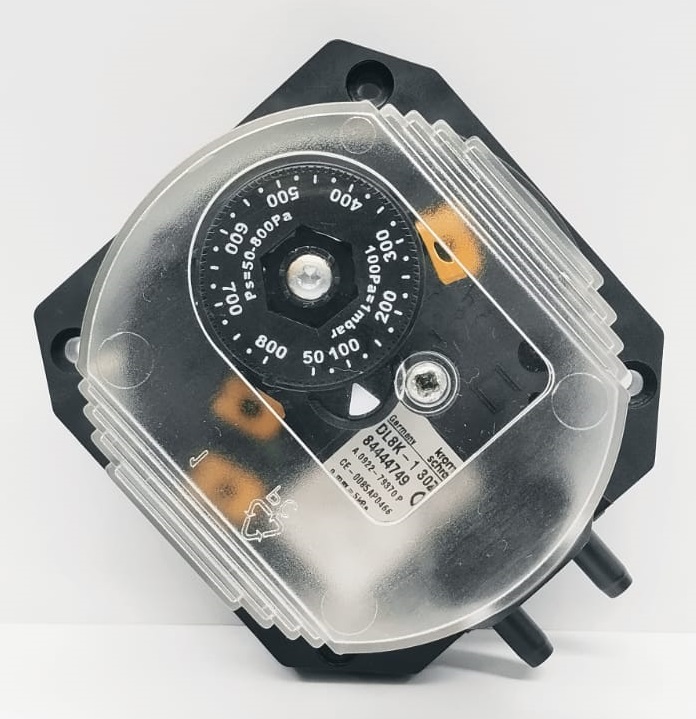

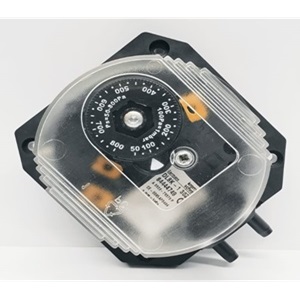

DL Series Pressure Switch for Air
- Precision differential pressure switch
- Monitoring of air, flue gas and other non-aggressive gases
- High switching point stability
- Switching point selection via hand wheel or adjusting screw
- Flexible mounting options
- Frequent application includes air-conditioning systems and kitchens
- Electrical wiring with AMP plugs
- RoHS 2002/95/EC and follow-up directive 2011/65/EC
Application
Pressure switches for air DL can be used as positive pressure switches, vacuum sensors or differential pressure switches for air, flue gas and other non-aggressive gases. They are not suitable for fuel gases. They monitor extremely low pressure differentials.
They trigger switch-on, switch-off or switch-over operations if a set switching point is reached. This switching point can be adjusted using a hand wheel or, if required, it can be fixed using an adjusting screw.
The diaphragm pressure switch with micro switch features particularly high contact reliability as low gas release components are used.
Adjusting Range: 50 - 800 Pa (0.5 - 8 mbar)
Max. Inlet Pressure: 5 kPa
Positive pressure: Gas, air, flue gas or biomethane
Negative pressure: Air or flue gas
Differential pressure: Air or flue gas
Medium temperature: -15 °C to +80 °C
Storage temperature: -40 °C to +80 °C
Electrical connection: AMP plugs
Diaphragm: Tempered LSR diaphragm system/p>
Enclosure: IP 54
For more information on technical data, please refer to the data sheet.
