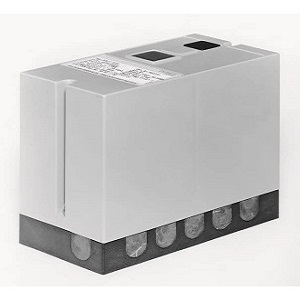

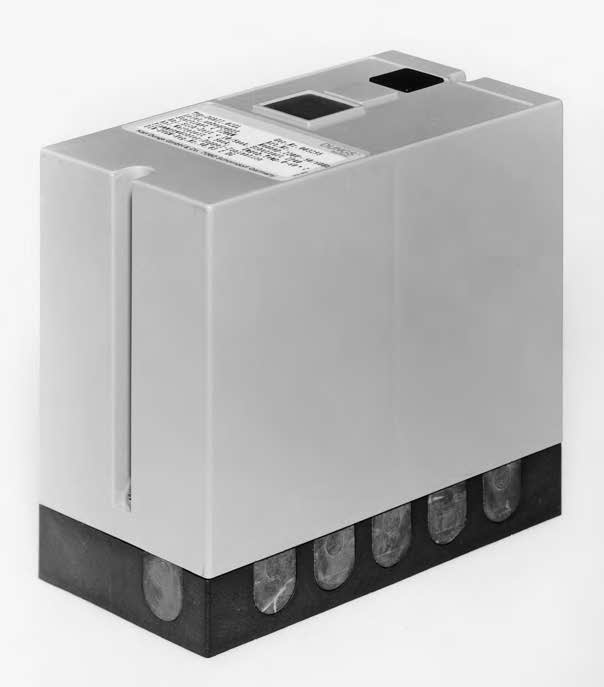

DK2F - Valve Proving System

Type: DK 2F Serie 02

Application: Automatic leak testing between two solenoid valves

Voltage: 220 VAC / 50 Hz

Total test-time: 60 s

Test-time (without pressure): 22 s

Test-time (with pressure): 22 s

Ventilation / Filling : 2.5 s

Ger.Nr.: 0012186

Brand: DUNGS, Germany

Condition: Like new

Plug-in base: Ordered separately

Stock: Subject to availability

Price: Available on request

Location: Products > Valve Proving Systems > DK 2F

Description

The valve test module checks the tightness of burner gas shut-off valves in combination with one or two pressure switches.

  • Dungs DK2F Serie 02 220V~ valve proving system
  • Total test time of 60 seconds
  • Test-time without pressure 22 seconds
  • Test-time with pressure 22 seconds
  • Ventilation / filling time 2.5 seconds
    • Application

    The DK2F has been designed for automatic leak testing between two solenoid valves in gas-consuming devices, either prior to start-up or after switching off the system. The test system can be used as a single leakage tester or in combination with automatic burners. It is used in gas burner systems for heating, process heating, process industry and gas engines.


    Specifications - DK2F

    Voltage: 220 VAC / 50 Hz

    Total test-time: 60 s

    Test-time (without pressure): 22 s

    Test-time (with pressure): 22 s

    Ventilation / Filling : 2.5 s

    Ger.Nr.: 0012186

    Switching capacity: 4A max.

    Ambient temperature: 0 °C to +60 °C

    For more information on technical data, please data sheet attached.

    If you have any questions about this product please email us at saadwaheed09@gmail.com
