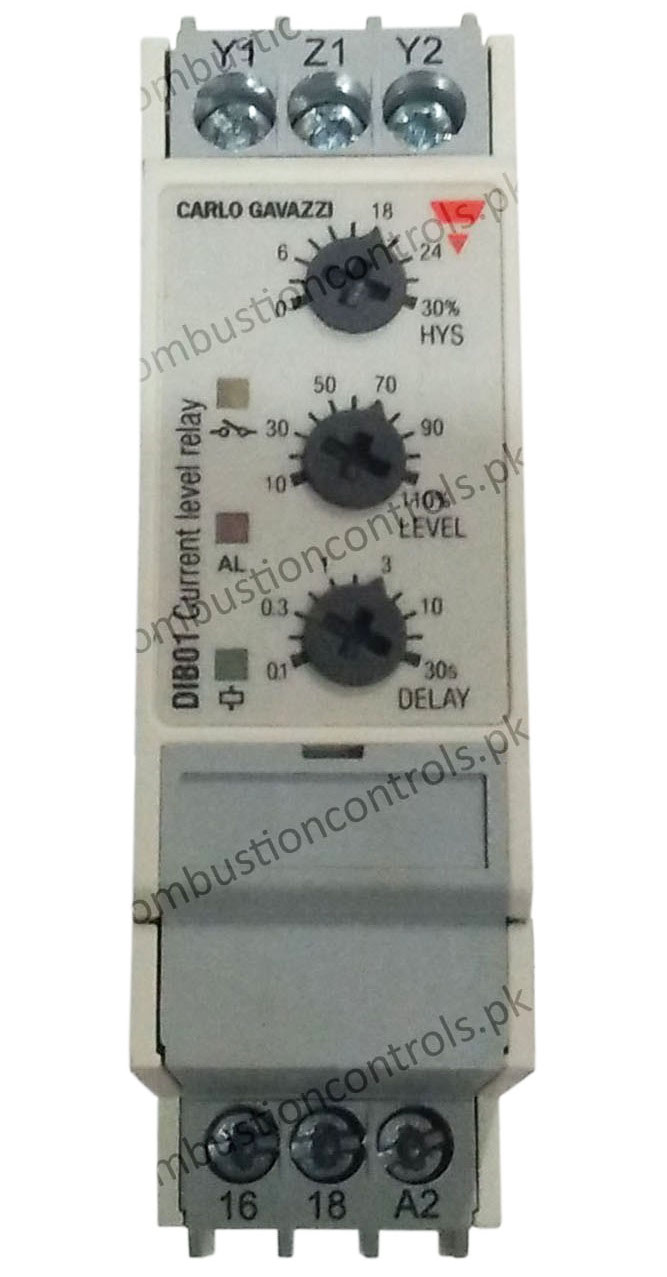

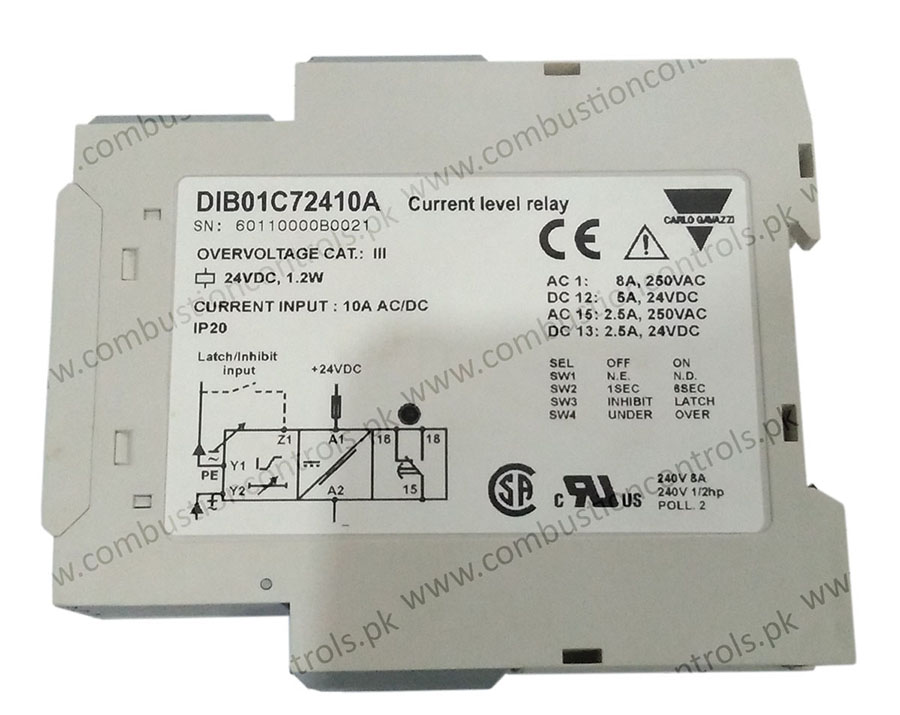

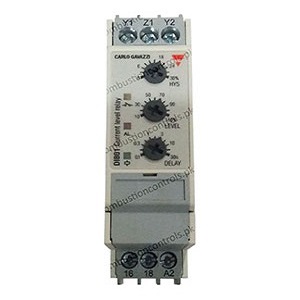

DIB01C72410A - Current Level Relay

Type: DIB01C72410A

Supply: 24 VDC

Measuring range: 1-10 A AC/DC

Output: SPDT

Mounting: DIN-rail

Brand: Carlo Gavazzi, Italy

Condition: New

Stock: Subject to availability

Price: Available on request

DIB01 and PIB01 are precise TRMS AC/DC over or under current (selectable by DIP switch) monitoring relays. Direct measuring or through current transformer. Owing to the built-in latch function, the ON-position of the relay output can be maintained. Inhibit function can be used to avoid relay operation when not desired (maintenance, transitions). The LED's indicate the state of the alarm and the output relay. Through the built-in shunt it is possible to monitor loads up to 10 A AC/DC.

Supply: 24 VDC

Measuring range: 1-10 A AC/DC

Current input: 10 A AC/DC

Output: SPDT relay

Mounting: DIN-rail

Degree of protection: IP20

Dimensions: 22.5 x 80 x 99.5 mm

Weight: Approx. 150 g

For more technical information, please refer to data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
