DBC1500E - Digital Burner Controller

Model: DBC1500E

Model type: Standard Model

Flame detection: UV sensor / Flame rod

UV detectors: C7027A, C7035A, C7044A, C7061A, C7061C

Pre-purge time: 35s

Ignition time: 3s

Flame failure response: 1s (max.)

Product category: Burner Controls

Brand: Honeywell

Condition: Unused (without box)

Plug-in base: Available separately

Stock: Subject to availability

Price: Available on request

Location: Brands > Honeywell > DBC1500E

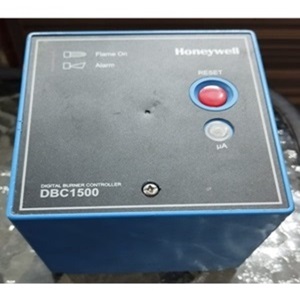

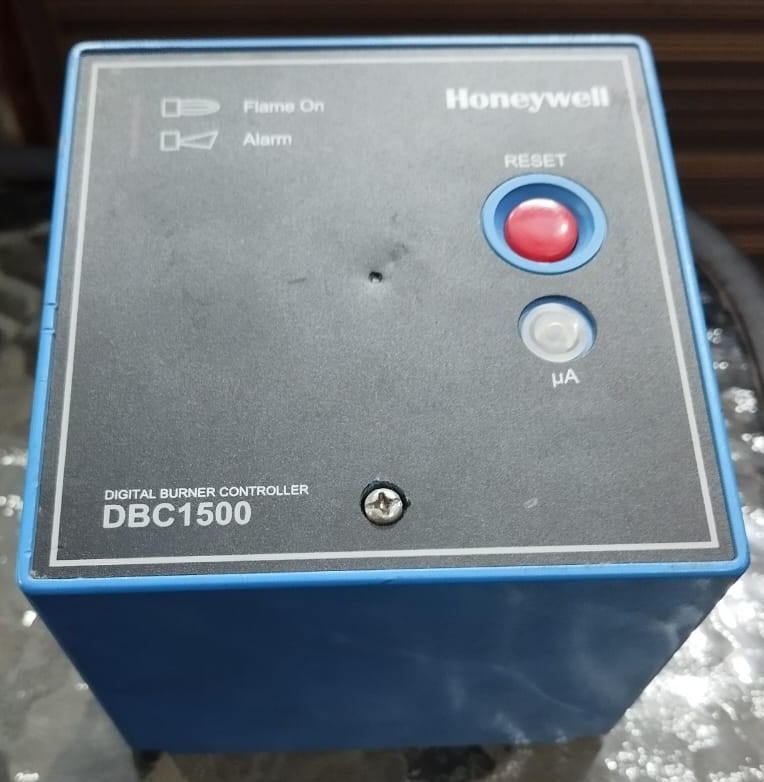

Digital Burner Controller DBC1500 Series

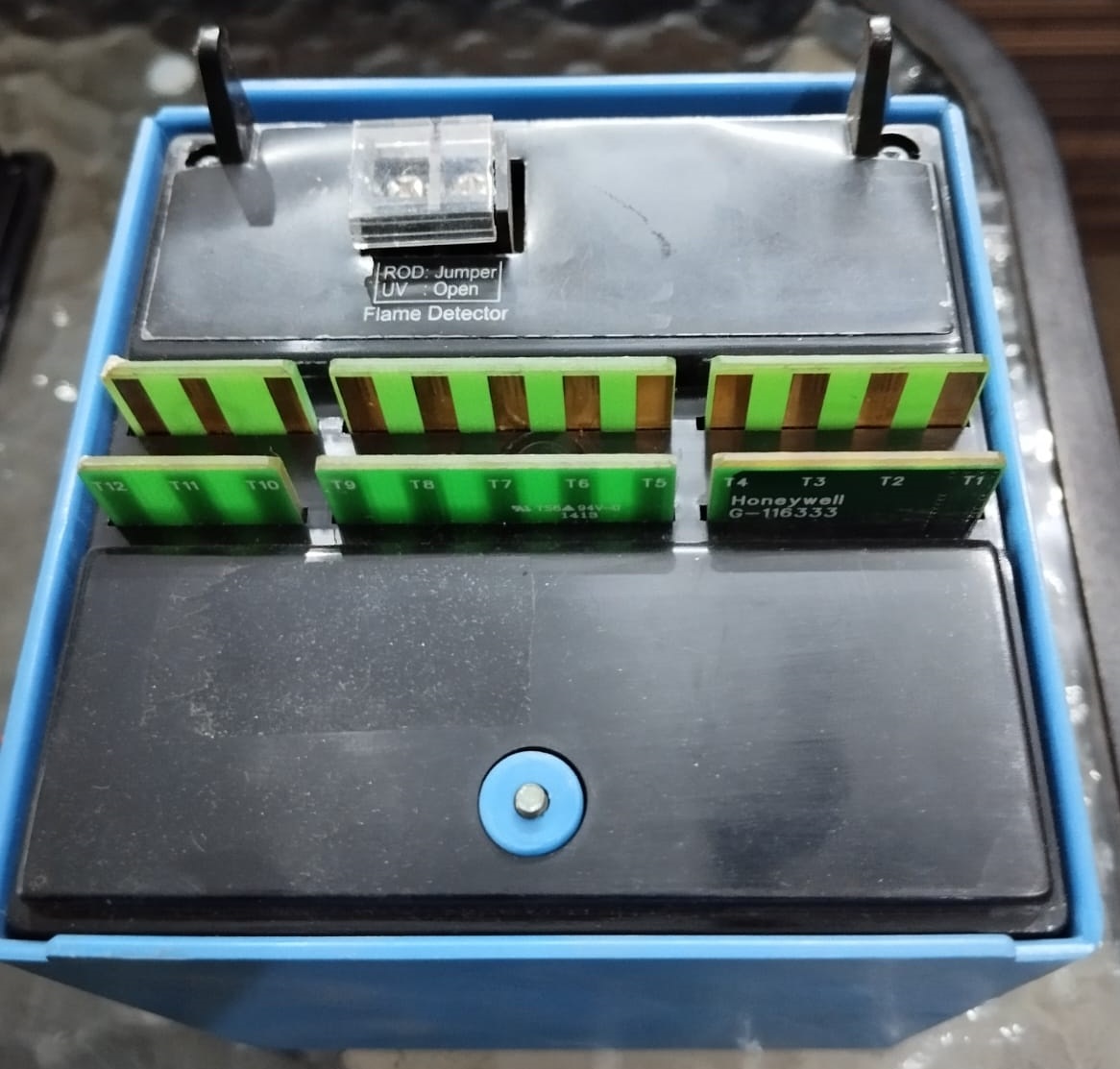

The Honeywell DBC1500 is a microprocessor-based integrated burner controller for automatically fired gas, oil or combination fuel industrial single burner power applications. The DBC1500 system consists of the relay module and wiring sub-base. The DBC1500 Standard Model provides the minimum requirements to control an industrial burner system, such as automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and troubleshooting.












Model: DBC1500E

Model type: Standard Model

Flame detection: UV sensor / Flame rod

UV detectors: C7027A, C7035A, C7044A, C7061A, C7061C

Pre-purge time: 35s

Ignition time: 3s

Flame failure response: 1s (max.)

For more information on technical data, please see data sheet.














If you have any questions about this product please email us at saadwaheed09@gmail.com
