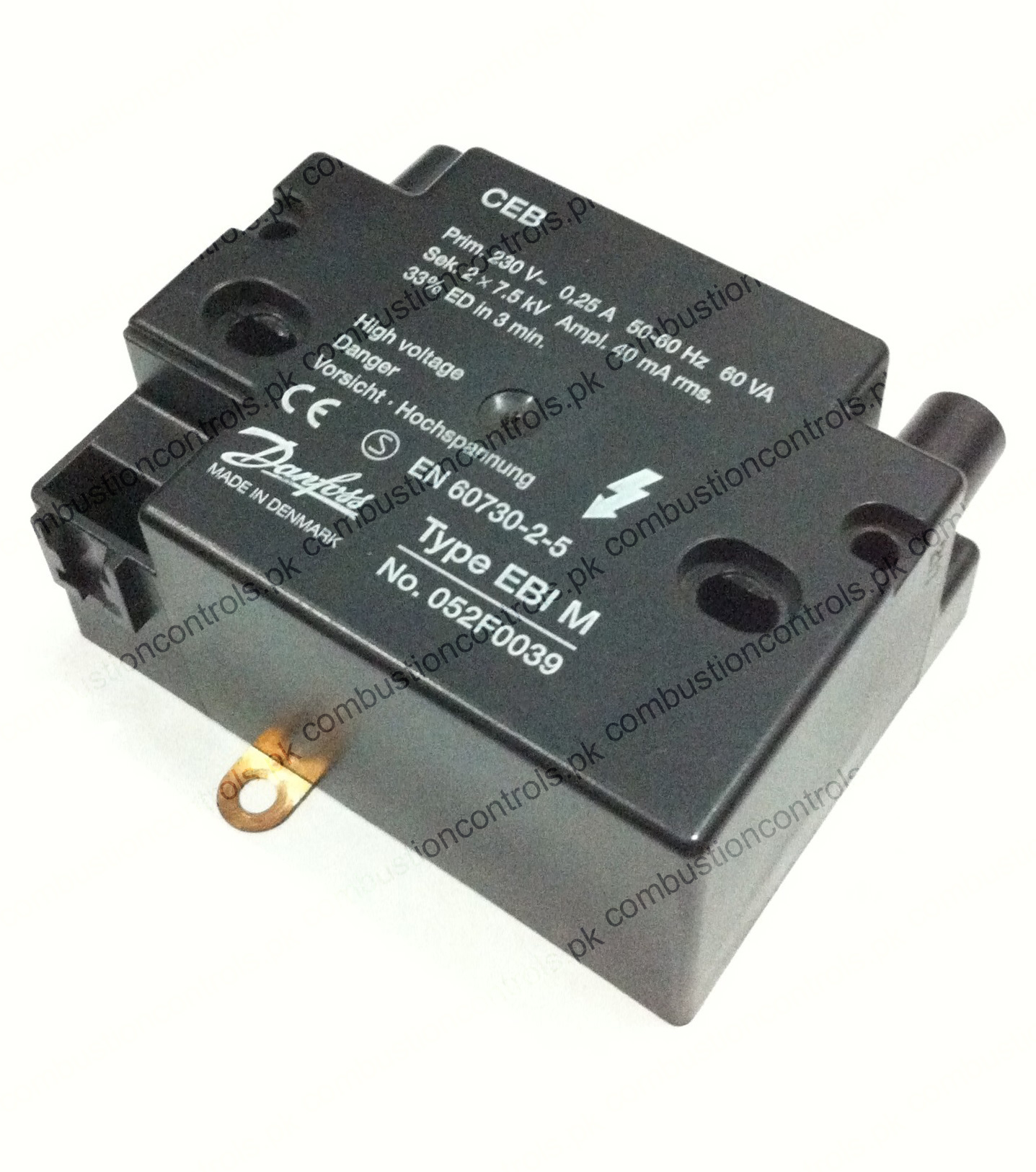

Danfoss EBI M Electronic Ignition Unit
The EBI M is electronic ignition unit for intermittent ignition between 2 electrodes and frame in small and medium size oil or gas burners.
Low weight and small dimensions, due to high frequency operation, makes the EBI M very suitable for use in modern compact burners.
Connections with a plug on the primary side and bushes on the secondary side make installation and service quick and simple.
Applications and Features
• Oil/gas burners in general
• 2-pole ignition
• Secondary mid-point connected to earth/frame
• 33% ED at 60 °C
• Front connection for secondary cables
• 230 V
EBI M Technical Data
Mains connection: 230 V - 0.25 A - 50/60 Hz - 60 VA
Working range: 187 - 255 V
Main fuse: max. 10 A
Secondary connection*: 2 x 7.5 kV amp.
Short circuit current: 40 mA (rms)
Frequency: 20 kHz
ED in 3 minutes (cutting in): 33% at 60 °C
Ambient temperature: -10°C to +60 °C
Storage temperature: -25°C to +85 °C
Enclosure: IP 40 (Not for secondary connections)
EMC (Generic Standard): Emission EN 55014-1, Immunity EN 55014-2
Primary connection: 3 x 0.75 mm² cable with special plug
Secondary connections: 2 x Ø4 mm plugs
Earth connection: Through the primary cable
Distance between electrodes: Recommended 2.5 mm to 5.0 mm
Weight: approx. 300 g
*Avoid use of divergent electrodes due to risk of electrical cable break down and too high ignition voltage.
