Danfoss 52L Trafo Type Ignition Transformer | Combustion Controls Burner Components

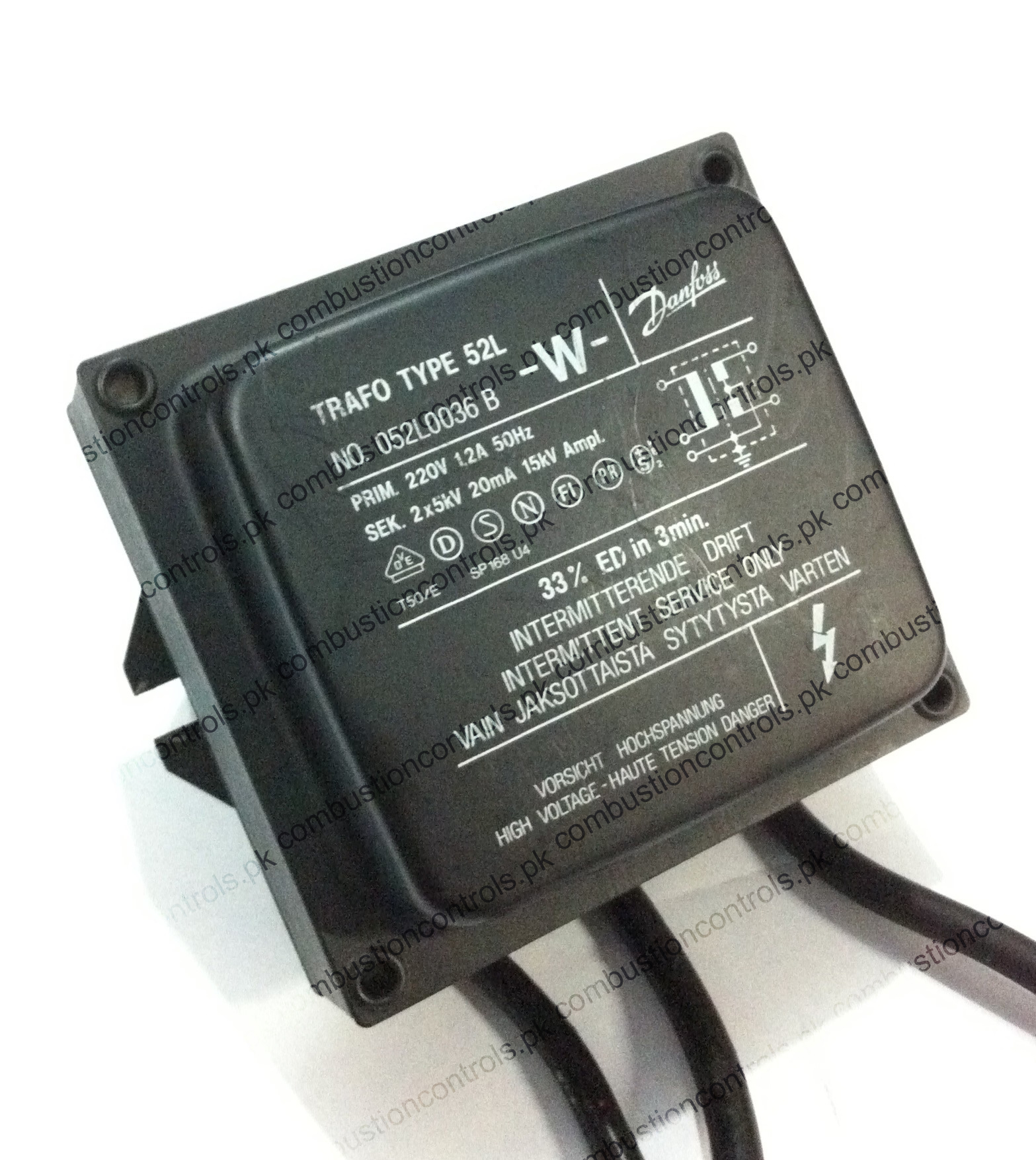

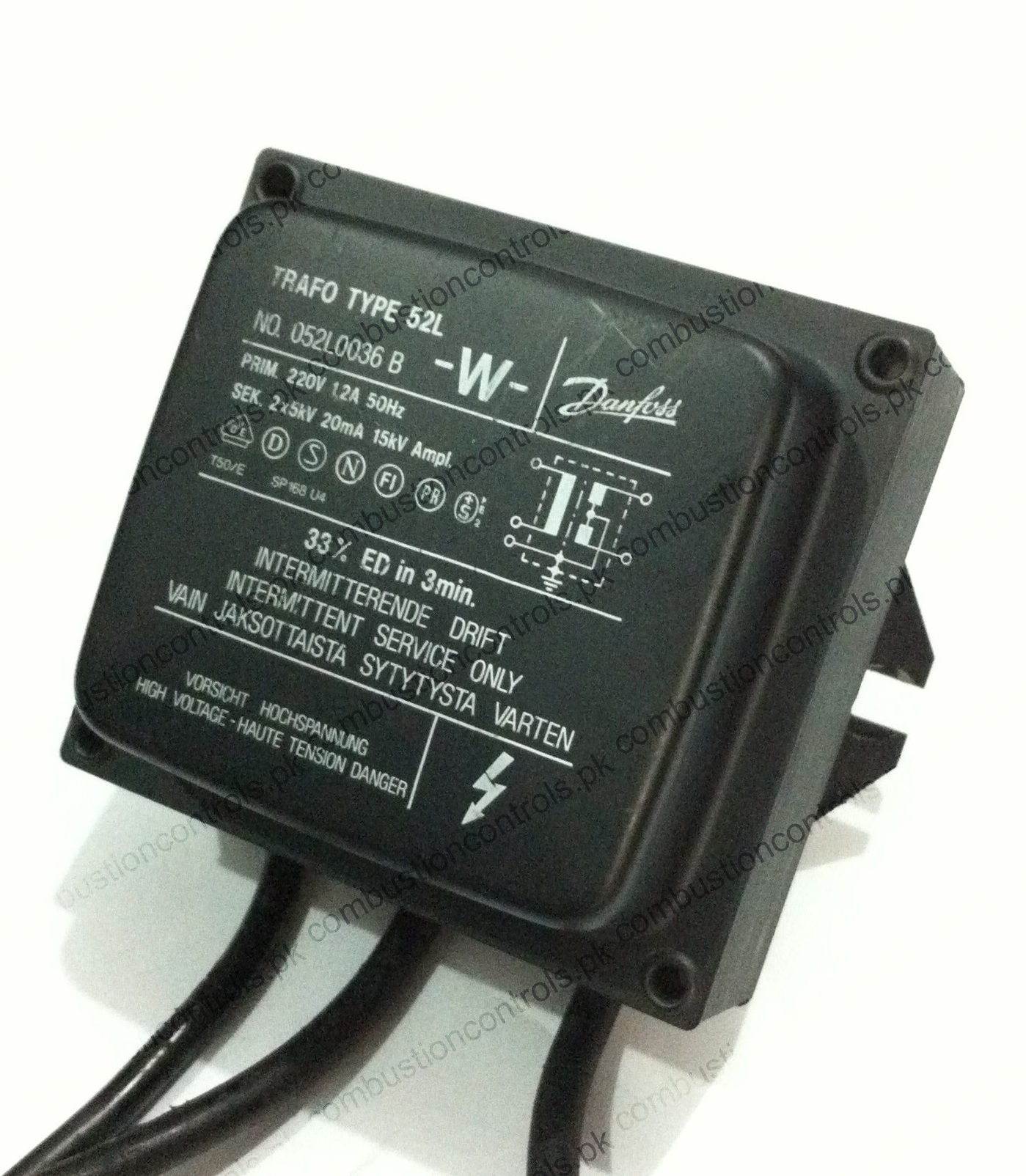

Danfoss Trafo Ignition Transformer 220V

Type : Trafo Type 52L

Code no. : 052L0036 B

Primary : 220V 1,2A 50Hz

Secondary : 2 x 5kV 20mA 15kV Ampl.

Primary cable length : 45 cm

Ignition cables length : 39 cm each

Availability: Sold out

Price: Available on request

Video link: https://youtu.be/53bD70WN7rw

Danfoss Trafo Ignition 52L

Danfoss trafo type ignition transformer for intermittent ignition between 2 electrodes. Can be used on gas, oil and dual fuel burners.

Connections with plugs on the secondary side make installation and service quick and simple.

Features

• 2-pole ignition

• For use on oil, gas and dual fuel burners

• Earth connection through the primary cable

• 33% ED in 3 mins.

EBI4 M

Mains connection: 220 V - 1,2 A - 50 Hz

Secondary connection*: 2 x 5kV 20mA 15kV Ampl.

ED in 3 minutes (cutting in): 33%

Storage temperature: -25°C to +85 °C

Primary connection: 3 x 0.75 mm² cable

Ignition cables: 2 x Ø7 mm fixed cables

Ignition cables length: 390 mm each

Distance between electrodes: Recommended 2.5 mm to 5.0 mm

Weight: 2.165 kg

*Avoid use of divergent electrodes due to risk of electrical cable break down and too high ignition voltage.

If you have any questions about this product please email us at info@combustioncontrols.pk
