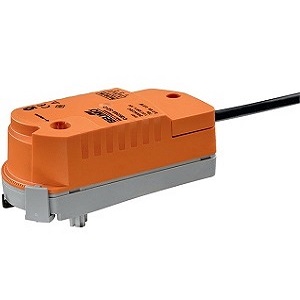

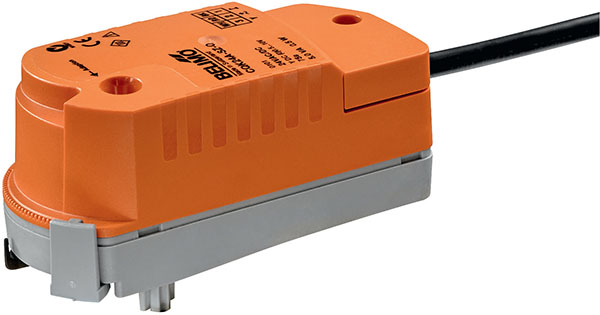

CQK24A-SR - Rotary Actuator

Type: CQK24A-SR

Nominal voltage: AC/DC 24 V

Torque motor: 1 Nm

Position feedback U: 2...10 V

Running time motor: 75 s / 90°

Brand: Belimo

Condition: Lotted

Stock: Subject to availability

Price: Available on request

Location: Brands > Belimo > CQK24A-SR

CQK24A-SR

Rotary actuator for zone valves

  • Torque motor 1 Nm
  • Nominal voltage AC/DC 24 V
  • Control modulating 2...10 V
  • Position feedback 2...10 V
  • Snap-assembly of the actuator
  • Flow setting variable
  • De-energised closed (NC)






















    • Nominal voltage: AC/DC 24 V

    Nominal voltage frequency: 50/60 Hz

    Power consumption in operation: 2.5 W

    Power consumption for wire sizing: 5 VA

    Torque motor: 1 Nm

    Operating range Y: 2...10 V

    Position feedback U: 2...10 V

    Running time motor: 75 s / 90°

    Position indication: Mechanical

    Weight: 0.20 kg (without packing)

    For more information on technical data, please see data sheet.
