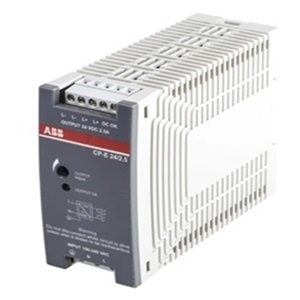

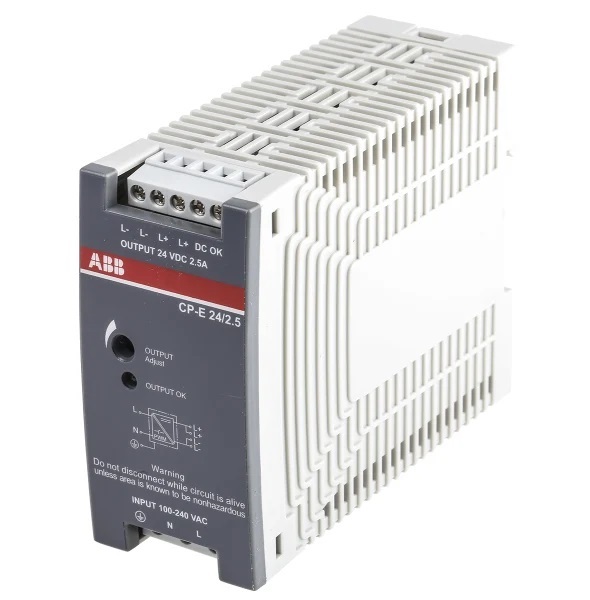

Power supply CP-E 24/2.5 - 1SVR427032R0000
The primary switch mode power supply offers two voltage input ranges. This enables the supply with AC or DC. Furthermore it is equipped with two generous capacitors, which ensure mains buffering of at least 30 ms (at 230 V AC). That is why the devices can be used worldwide also in high fluctuating networks and battery-powered plants.
By means of the potentiometer “OUTPUT Adjust” the output voltage can be adjusted within a range of 24 to 28 V DC. Thus, the power supply can be optimally adapted to the application, e.g. compensating the voltage drop caused by a long line length. The green LED “OUTPUT OK” is lightening during operation.
Rated output voltage 24 V DC
Output voltage adjustable via front-face rotary potentiometer “OUTPUT Adjust”
Rated output current 2.5 A
Rated output power 60 W
Wide range input 100-240 V AC (85-264 V AC, 90-375 V DC)
Typical efficiency of 89 %
Low power dissipation and low heating
Free convection cooling (no forced cooling with ventilators)
Signalling output “DC OK” (Transistor) for output voltage OK
LEDs for status indication
Order code: 1SVR427032R0000
Input voltage range: 85-264 V AC / 90-375 V DC
Frequency range (AC): 47-63 Hz
Typical input current (at 115 V AC): 1060 mA
Typical input current (at 230 V AC): 590 mA
Rated output voltage / current: 24 V DC / 2.5 A
Adjustable voltage range: 24-28 V DC
Output voltage: OUTPUT OK: green LED
Rate output power: 60 W
Dimensions (W x H x D): 40.5 x 90 x 114 mm
Weight: 0.331 kg (0.73 lb)
For more information on technical data, please see data sheet.
