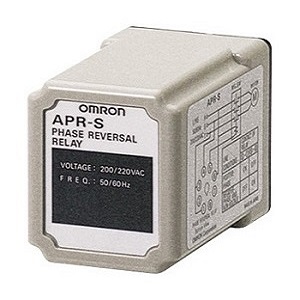

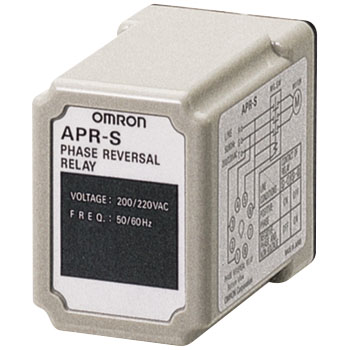

APR-S - Reverse Protection Relay

Model: APR-S

Use Uses voltage detection to determine reverse revolution of three-phase motor

Supply voltage: 200/220 VAC

Operating voltage range: 170 to 240 VAC

Origin: Japan

Plug-in base: Ordered separately

Stock: Subject to availability

Price: Available on request

Features
  • Detects motor reversal due to incorrect wiring.
  • Direction of motor revolution is detected as soon as power is applied to the Relay. If the power is reversed, the magnetic contactor locks in the open state.
  • The magnetic contactor can also be wired to protect it from being closed in open phase.
  • Small, plug-in Relay that needs no adjustment.
  • Uses voltage detection method to operate independently of load current.



























    • Specifications

    Supply voltage: 200/220 VAC

    Operating voltage range: 170 to 240 VAC

    Ambient storage temperature: -10 °C to +50 °C

    Mounting bracket model: PFC-A6 (order separately)

    Weight: Approx. 100 g

    For more information on technical data, please see data sheet.





















    If you have any questions about this product please email us at saadwaheed09@gmail.com
