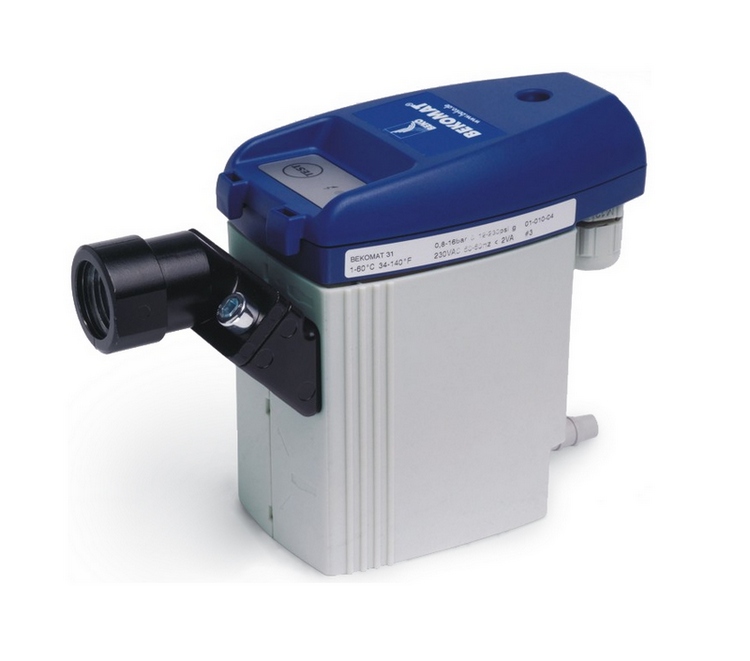

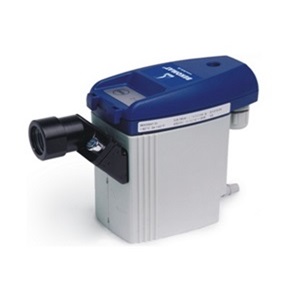

ALM-D180U - Condensate Drain

Type: ALM-D180U

Part No.: 111.00901

Pressure Range: 0.8 - 16 bar

Max. Compressor Capacity: 2.5 m3/min

Max. Dryer Capacity: 5 m3/min

Max. Filter Capacity: 25 m3/min

Operating Voltage: 95...240 VAC / 100...125 VDC

Brand: ALMiG

Condition: New

Stock: 1 piece (Subject to Availability)

Price: Available on request

Location on website: Brands > ALMiG > ALM-D180U

ALM-D180 / ALMiG

The ALM-D are level-regulated, electronically controlled condensate drains which are used wherever effective, reliable and cost-effective condensate discharge is needed.

Features:

  • No loss of pressure
  • Drainage according to volumes produced
  • No need to adapt to condensate type
  • Generous internal drainage cross-sections
  • Not Sensitive to dirt or condensate containing particles
  • Condensate does not tend to emulsify
  • Fully automatic monitoring with LED display



























    • Type: ALM-D180U

    Part No.: 111.00901

    Pressure Range: 0.8 - 16 bar

    Max. Compressor Capacity: 2.5 m3/min

    Max. Dryer Capacity: 5 m3/min

    Max. Filter Capacity: 25 m3/min

    Operating Voltage: 95...240 VAC / 100...125 VDC

    Condensate Supply: G 1/2

    Condensate Drainage: G 1/4

    Operating Temperature: +1°C to +60°C























    If you have any questions about this product please email us at saadwaheed09@gmail.com
