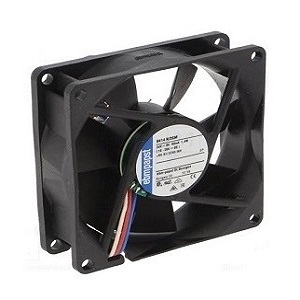

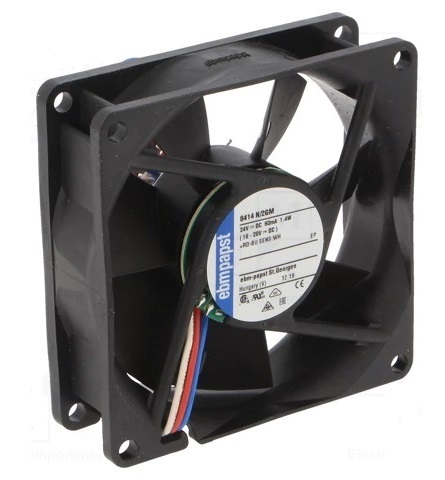

8414N/2GM - DC Axial Fan

Type: 8414N/2GM

Air flow: 58 m³/h (34.1 cfm)

Nominal voltage: 24 VDC

Power consumption: 1.4 W

Nominal speed: 2600 rpm

Dimensions: 80 x 25 mm

Product category: Axial Fans

Brand: Ebmpapst

Condition: New

Stock: Subject to availability

Price: Available on request

Location: Brands > Ebmpapst > 8414N/2GM

8414N/2GM - DC Axial Fan

  • Glass-fiber reinforced PBT plastic housing material

  • Glass-fiber reinforced PA plastic impeller material

  • Air flow 58 m³/h (34.1 cfm)

  • Compact dimensions with 80 x 80 x 25 mm size

  • Temperature range of -20 to +70 °C

  • Exhaust over struts

  • 80,000 hours service life L10 at 40 °C

  • Connection via single wires AWG 24, TR 64


























    • Air flow: 58 m³/h (34.1 cfm)

    Nominal voltage: 24 VDC

    Voltage range: 18...28 VDC

    Power consumption: 1.4 W

    Nominal speed: 2600 rpm

    Dimensions: 80 x 25 mm

    Direction of rotation: Clockwise, looking towards rotor

    Temperature range: -20 to +70 °C

    Sound pressure level: 26 dB(A)

    Weight: 95 g (without packing)

    For more information on technical data, please see technical data sheet.
