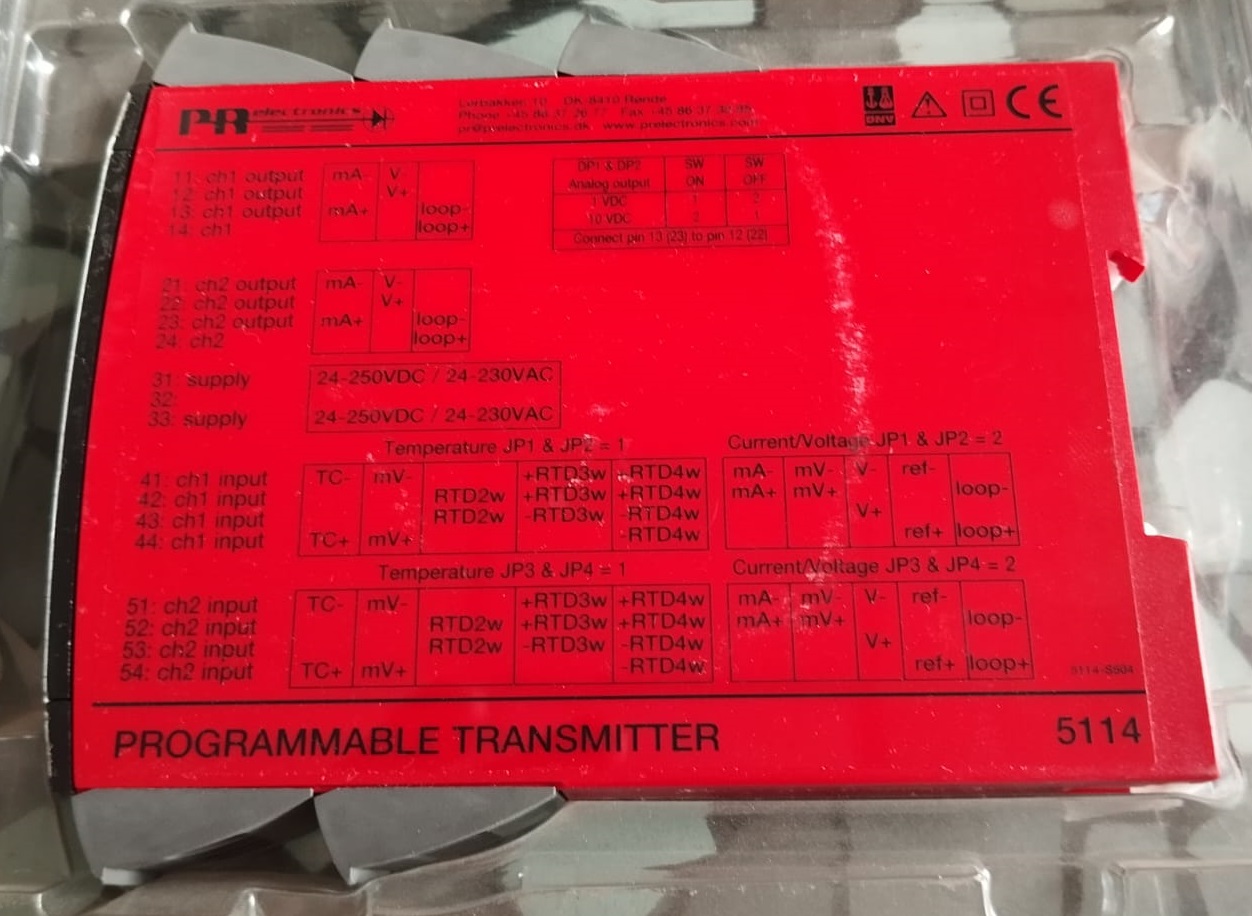

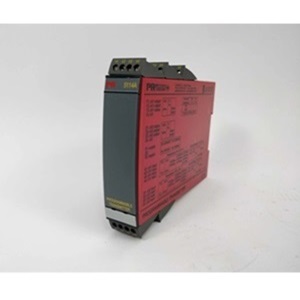

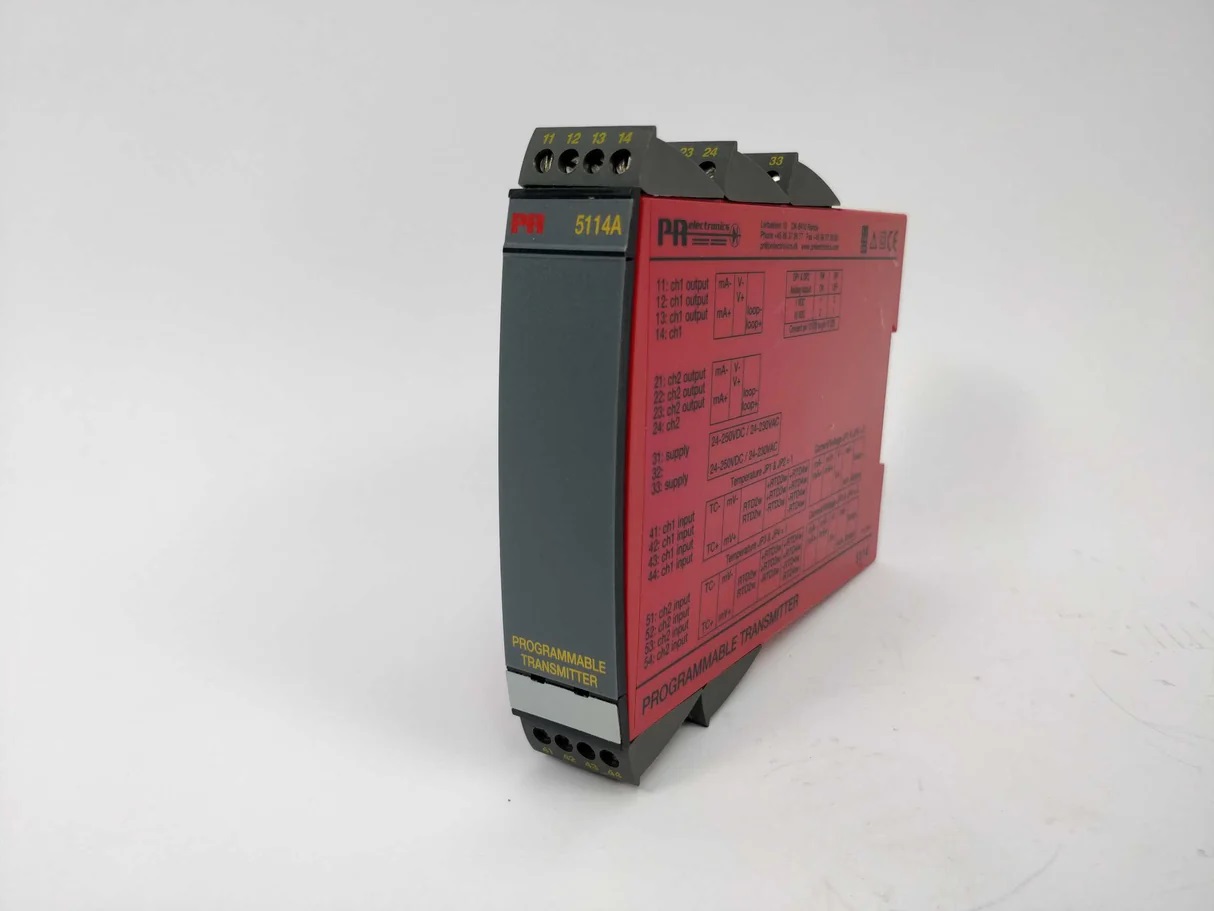

5114A - Programmable Transmitter

Type: 5114A

Supply Voltage: 24...230 VAC or 24...250 VDC

Input: RTD / TC / R / mA / V / mV

Current Input Range: 0...100 mA

Voltage Input Range: 0...250 VDC / -150...+150 mV

Current Output Signal Range: 0...20 mA

Passive 2-wire output: 4...20 mA

Brand: PR Electronics

Condition: New

Stock: 1 piece (subject to availability)

Price: Available on request

Product location on website: Brands > PR Electronics > 5114A

5114A - Programmable Transmitter
  • Input for RTD, TC, mV, linear resistance, mA, and V
  • 3-port 3.75 kVAC galvanic isolation
  • Current and voltage output
  • Universal voltage supply
  • 1- and 2-channel versions
  • Loop supply > 17.1 V
    • Advanced Features
  • The 5114 transmitter can be configured using the PReset software and the Loop Link communications unit.
    • Application
  • Jumper selectable inputs for current/voltage or temperature.
  • Programmable current (0...100 mA) and voltage (0...250 VDC) inputs.
  • Linearized, electronic temperature measurement.
  • Conversion of linear resistance variation e.g, from solenoids and butterfly valves or linear movements with attached potentiometer.
  • 17.1 VDC loop and 2.5 VDC potentiometer supplies.
  • Automatic 4- / 3-wire or programmable 2-wire cable compensation.
  • Configurable sensor error detection including NAMUR NE43.




















    • Supply Voltage: 24...230 VAC or 24...250 VDC 50/60 Hz

    Fuse: 400 mA SB / 250 VAC

    Max. required power: 2.1 W / 2.8 W (1 / 2 ch.)

    Input: RTD / TC / R / mA / V / mV

    Current Input Range: 0...100 mA

    Voltage Input Range: 0...250 VDC / -150...+150 mV

    Current Output Signal Range: 0...20 mA

    Passive 2-wire output: 4...20 mA

    Operating temperature: -20°C to +60°C

    Protection degree: IP20

    For more information on technical data, please see data sheet.



















    If you have any questions about this product please email us at saadwaheed09@gmail.com
