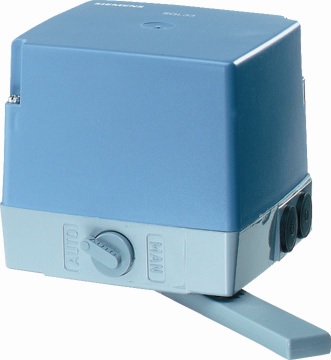

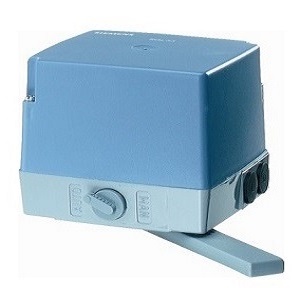

SQL83.00 - Siemens Electromotoric Actuator

Type: SQL83.00

Operating voltage: AC 24 V

Positioning signal: 3-position

Positioning time: 125 s for 90°

Positioning force: 12.5 Nm

Brand: Siemens

Country of origin: Sweden

Condition: Used - like new (pictures available on request)

Availability: 1 pc in stock (subject to availability)

Price: Available on request

Product location: Products > Actuators > SQL83.00

SQL83.00
  • Operating voltage AC 24 V
  • 3-position control signal
  • Nominal angle of rotation 90°
  • Optional auxiliary switch and potentiometer for extra functions
  • Manual adjuster and position indicator
  • Reversible electric motor






















    • Technical data - SQL83.00

    Operating voltage: 24 VAC

    Frequency: 50/60 Hz

    Power consumption: 6.5 VA

    Positioning signal: 3-position

    Positioning time: 125 s for 90°

    Torque: 12.5 Nm

    Weight: 1.35 kg

    For more information on technical data, please see data sheet.


















    If you have any questions about this product please email us at saadwaheed09@gmail.com
