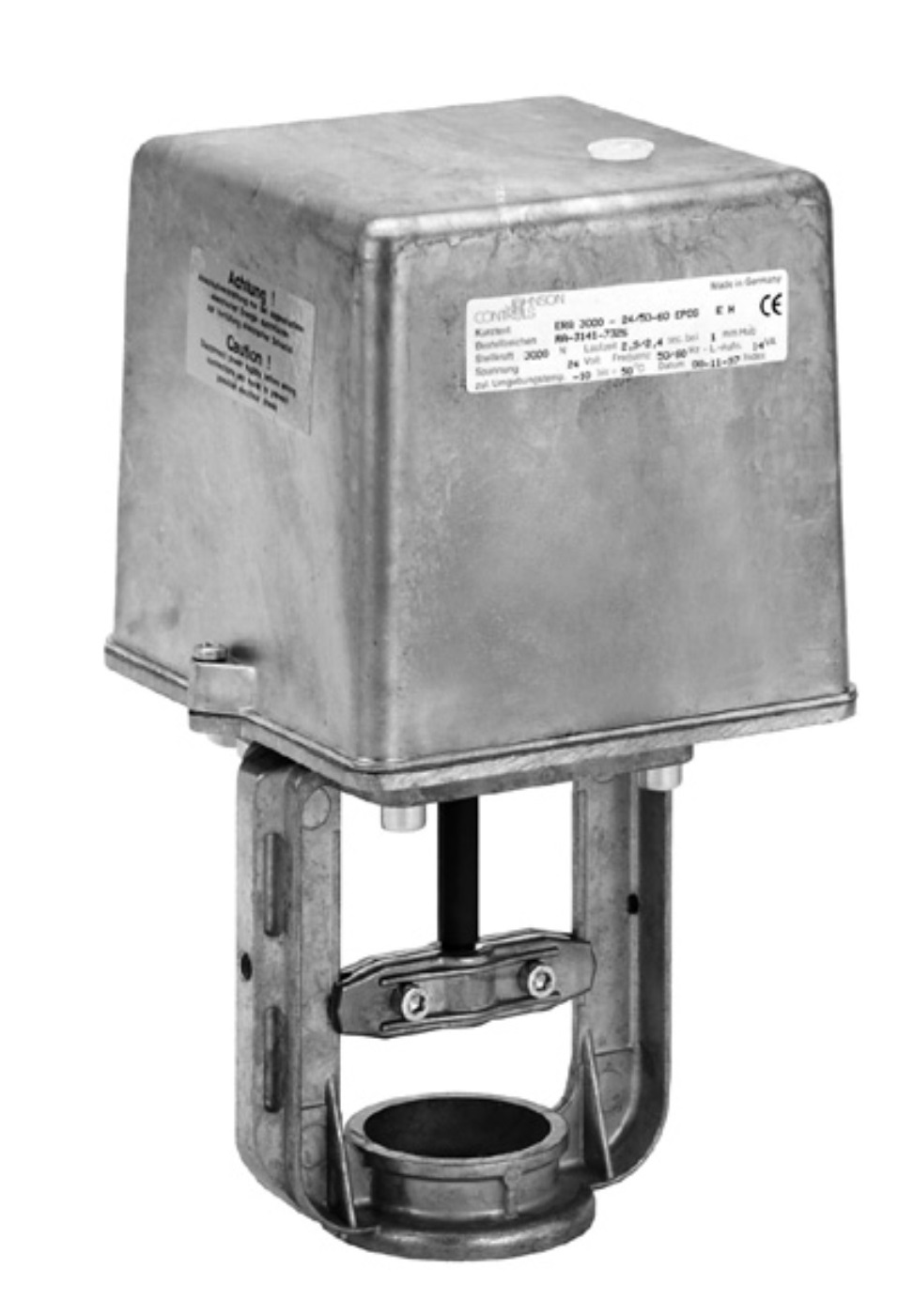

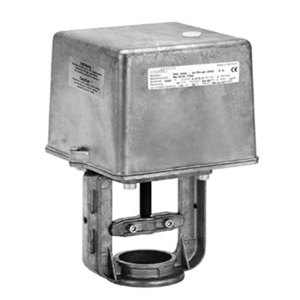

RA-3000-7326 - Electric Actuator

Model: RA-3000-7326

Actuator force: 3000 N

Supply voltage: 24V, 50Hz

Hand crank: None

Accessories, factory mounted: None

Type of motor: Synchronous, Reversible

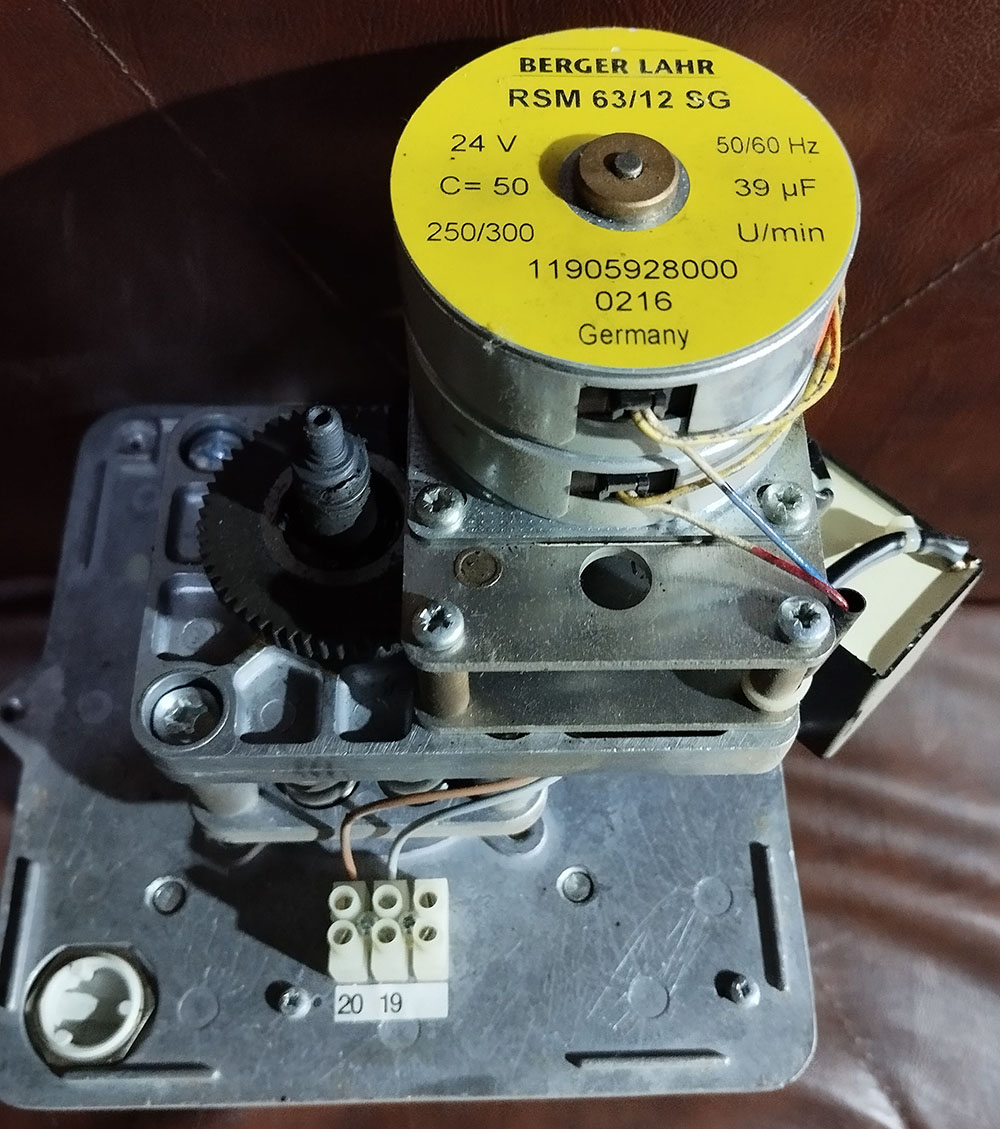

Synchronous motor: RSM 63/12 SG

Product category: Actuators (listed alphabetically)

Brand: Johnson Controls

Condition: Unused

Stock: Subject to availability

Price: Available on request

Location on website: Brands > Johnson Controls > RA-3000-7326

Introduction - RA-3000 Electric Actuator

The RA-3000 series synchronous motor-driven reversible actuators are available for 3-point (floating) or with electric positioner for 0...10 V control. They feature factory calibrated pressure switches to provide specified close-off ratings.

These actuators are available in three sizes with 1600 N, 1800 N and with 3000 N nominal force and can be used with JC flanged valves according to maximum close-off pressure ratings specified.

Factory fitted options, such as 2kΩ feedback potentiometer, auxiliary switches and hand crank are available.

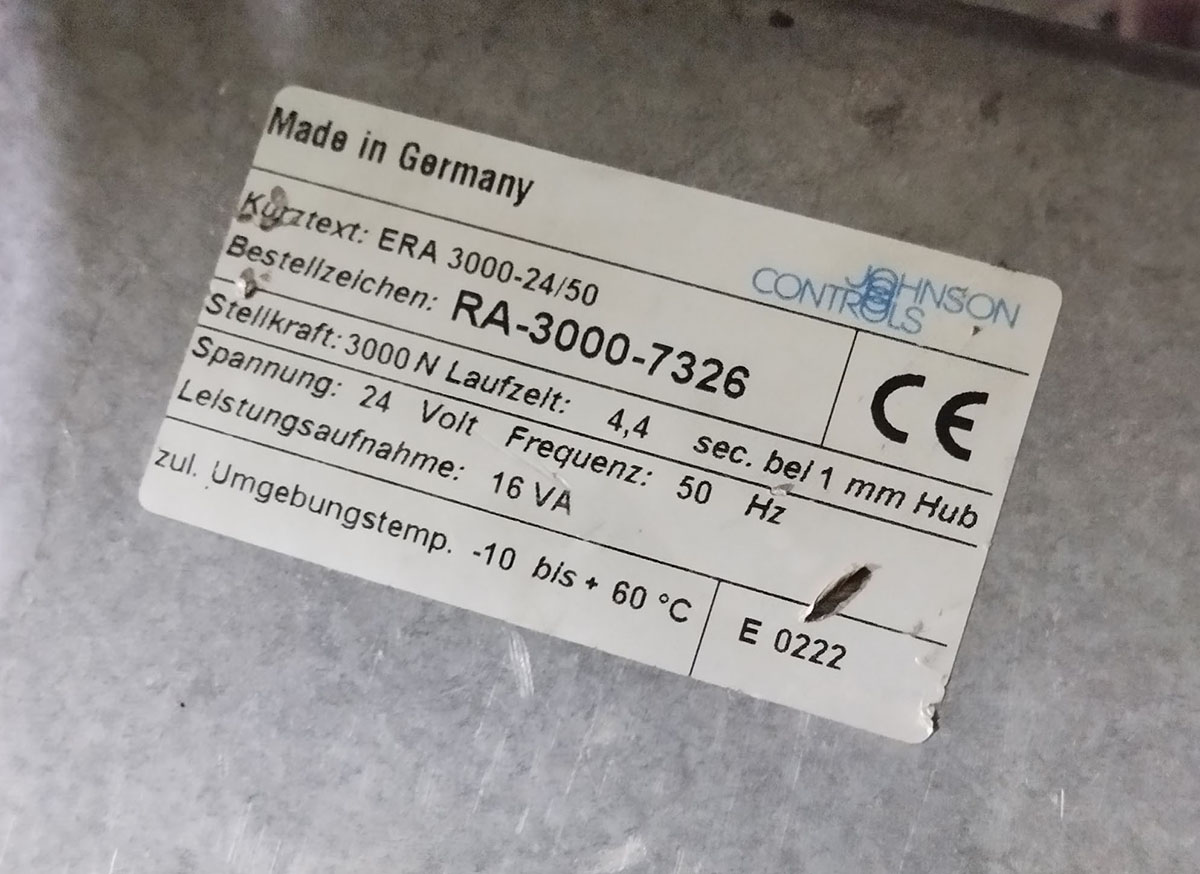

RA-3000-7326

Actuator force: 3000 N

Supply voltage: 24V, 50Hz

Hand crank: None

Accessories, factory mounted: None

Type of motor: Synchronous, Reversible

Synchronous motor: RSM 63/12 SG

Power consumption: 16 VA

Operating temperature: -10...+60 °C

Weight: 4.4 kg (excluding packing)

For more information on technical data, please see data sheet.























If you have any questions about this product please email us at saadwaheed09@gmail.com
