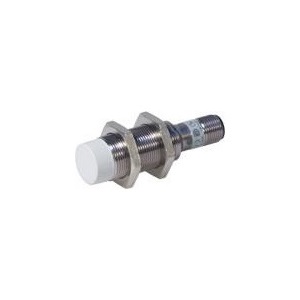

IA18ASN08PCM1 - Inductive Sensor

Type: IA18ASN08PCM1

Housing diameter: M18

Rated operating distance (Sn): 8 mm

Output type: PNP

Output configuration: Break switching

Rated operational voltage: 10 to 40 VDC

Brand: Carlo Gavazzi, Italy

Condition: New

Cable: Inlcuded

Qty in stock: 1 pc only

Price: Available on request

A family of inexpensive general purpose inductive proximity switches in industrial standard nickel-plated brass housings. They are able to handle simple applications where a basic sensor provides adequate sensing performance. Output are open collector NPN or PNP transistors.


































Housing diameter: M18

Connection: Plug

Body style: Short

Rated operating distance (Sn): 8 mm

Output type: PNP

Output configuration: Break switching

Rated operational voltage: 10 to 40 VDC

Protection: Reverse polarity, short-circuit, transients

Indication for output ON: LED, yellow

Body material: Nickle-plated brass

Front: Grey thermoplastic polyester

Operating temperature: -25° to +70°C

Cable: 2 m, 3 x 0.3 mm2, grey PVC, oil proof

Degree of protection: IP67

Weight: Approx. 120 g

For more technical information, please refer to data sheet.










































If you have any questions about this product please email us at saadwaheed09@gmail.com
