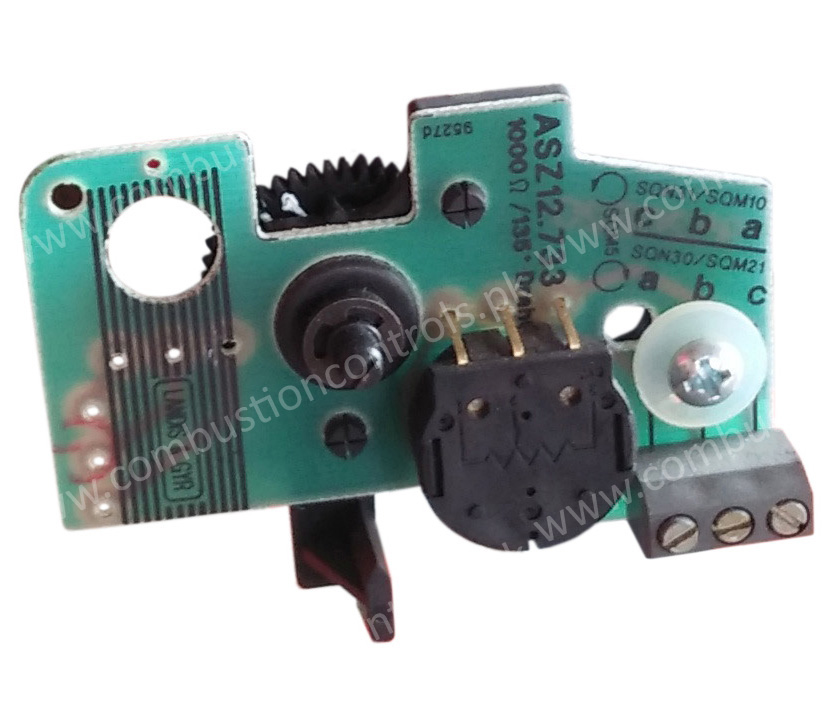

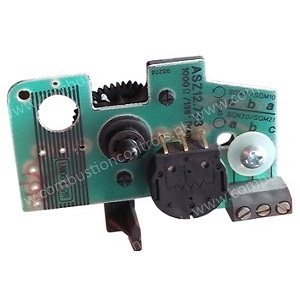

ASZ12.733 1000Ω Potentiometer for SQM - SQN

Type: ASZ12.733

Angular rotation: 135°

Resistance: 1000 Ω

Stock: Subject to availability

Brand: Landis & Gyr

Origin: Germany

Price: Available on request

Function

Single potentiometer, wire, 135°, 1000 Ω, for SQM1../SQM2../SQM5../SQN3.. (only with high cover), SQN4..., SQN9... (only with extra potentiometer fixing AGA09).

ASZ... Potentiometers

The ASZ... potentiometers are designed for fitting to the drive shafts of actuators type SQM... and SQN....

They can be used for both position indication and position feedback (position checkback signal).

The wire potentiometers are suited for general use.























General unit data

Type: ASZ12.733

Operating voltage: DC 10 V

Angular rotation: 135°

Resistance: 1000 Ω

Terminal strip: Triple-pole

Mounting position: Optional

Weight: approx. 27 g































If you have any questions about this product please email us at saadwaheed09@gmail.com
