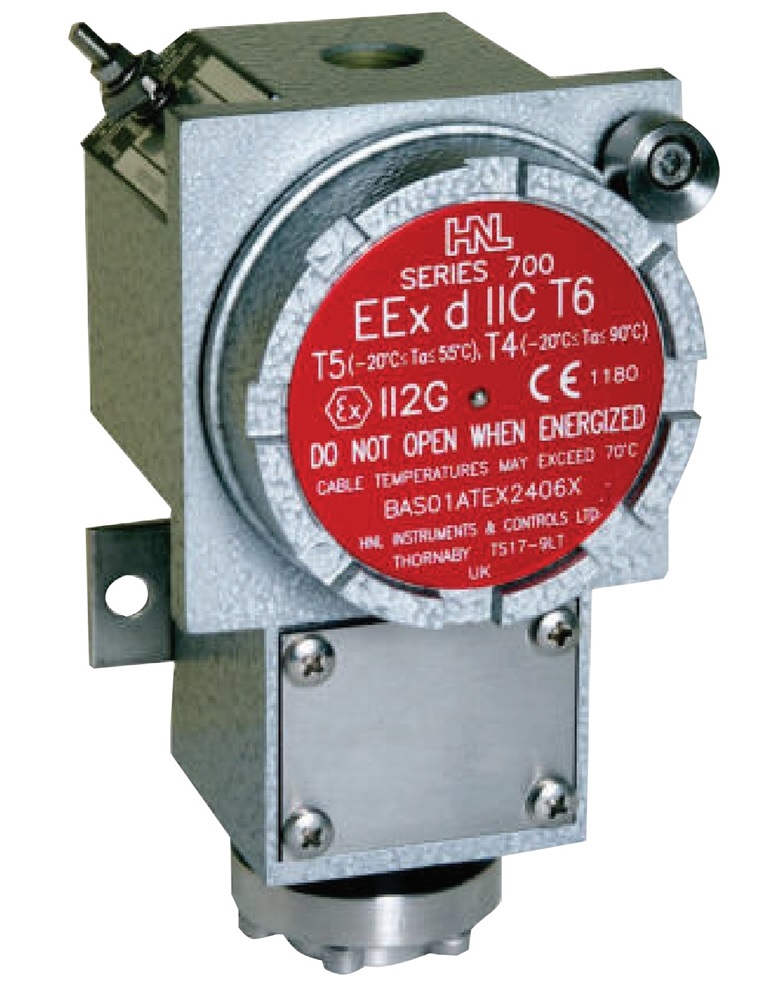

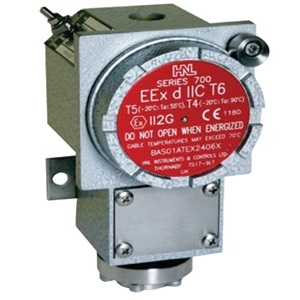

746P HNL Flame Proof Pressure Switch 746P5141 1A/1501 0.7-7 Bar 79639/1/1 Rototherm

746P - For Potentially Explosive Atmospheres

Range Code: 746 P

Type: 746P 5141 1A/1501

Application: For Potentially Explosive Atmospheres

Set Point Range: 0.7 - 7 bar

Certification: Exd IICT4/T5/T6 (Flameproof)

Output Switch: Single Switch

Output Switch Rating: 250 Vac 6A, 28 Vdc 2.5A

Process Connection: Rc 1/4 (1/4" BSP.T INT.)

Product Category: Pressure Switches (Listed Alphabetically)

Brand: HNL, UK

Condition: Unused

Stock: 1 piece (subject to availability)

Price: Available on request

Location on website: Products > Pressure Switches > 746P (listed alphabetically)

746P Pressure Switch - For Potentially Explosive Atmospheres

Series 700 pressure switches are designed to be used for potentially explosive atmospheres. A standard feature of the design is the inclusion of a venting and isolation chamber which (in the unlikely event of the process diaphragm failure) will prevent the process entering the switching enclosure.

The setpoint of the switch is adjusted by means of a capstan head screw, located within the lower section of the enclosure. This enables adjustment to be made even when energised, as it does not violate the flameproof integrity of the enclosure.
