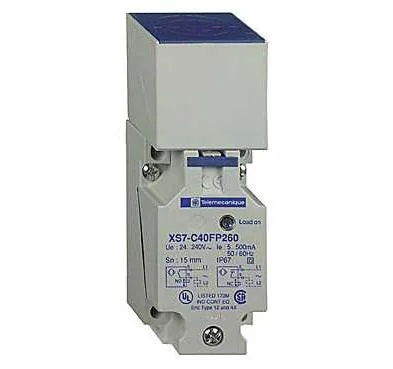

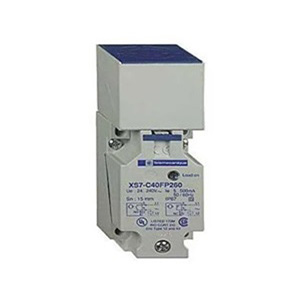

XS7-C40FP260 - Inductive Sensor

Type: XS7-C40FP260

Detector flush mounting acceptance: Flush mountable

Type of output signal: Discrete

Wiring technique: 2-wire

Sensing distance (Sn): 15 mm

Supply voltage: 24...240 V AC 50/60 Hz

Switching capacity: 5...500 mA

Product category: Inductive Sensors (listed alphabetically)

Brand: Telemecanique

Condition: New

Stock: 7-8 pcs (subject to availability)

Price: Available on request

Location: Brands > Telemecanique > XS7-C40FP260

Inductive Proximity Sensors - XS7C40FP260

Telemecanique high performance inductive proximity sensor - XS7 range - 40 x 40 x 117 - plastic material - sensing range 15 mm - 24..240VAC - 1 NO or 1 NC programmable - Screw clamp terminals 2 x 1.5 mm².

Features:
  • High performance inductive proximity sensor
  • Sensing range 15 mm
  • Flush mountable
  • Discrete output function 1 NO or 1 NC programmable
  • IP67 conforming to IEC 60529
  • Yellow LED status for output state



























    • Detector flush mounting acceptance: Flush mountable

    Type of output signal: Discrete

    Wiring technique: 2-wire

    Sensing distance (Sn): 15 mm

    Supply voltage: 24...240 V AC 50/60 Hz

    Switching capacity: 5...500 mA


    Detection face: 5 positions turret head

    Operating zone: 0...12 mm

    Status LED: Output state: 1 LED (yellow)


    Ambient temperature: -25...+70 °C

    Degree of protection: IP67 conforming to IEC 60529

    Net weight: 0.22 kg (excluding packing)


    For more information on technical data, please see data sheet.
