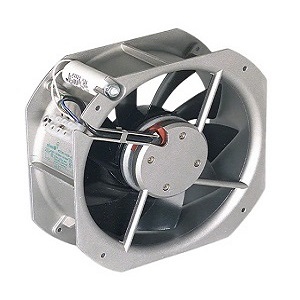

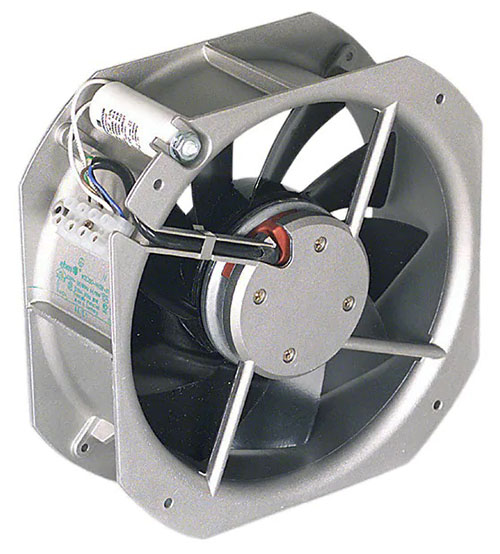

W2E200-HH38-01 - Axial Fan

Type: W2E200-HH38-01

Voltage: 230VAC 50/60Hz

Air volume: 925 m³/h

Speed: 2550 minˉ¹

Capacitor: 1.5µF / 450VDB

Brand: EBM-Papst

Condition: New

Availability: Out of stock

Price: Available on request

Location: Brands > Ebmpapst > W2E200-HH38-01

AC Compact Fan - Type W2E200-HH38-01 - Die-cast Aluminium housing - Voltage 230VAC Frequency 50/60Hz - Air volume 925 m³/h at 50Hz - Speed 2550 minˉ¹ - Power input 64W - Current 0.29A - Capacitor 1.5µF 400VDB.




























Voltage: 230VAC 50/60Hz

Air volume at 50Hz: 925 m³/h

Air volume at 60Hz: 1030 m³/h

Speed at 50Hz: 2550 minˉ¹

Speed at 60Hz: 2800 minˉ¹

Power input at 50Hz: 64W

Power input at 60Hz: 80W

Current at 50Hz: 0.29 A

Current at 60Hz: 0.35 A

Capacitor: 1.5µF / 450VDB

Noise level (dBA): 59 @ 50Hz / 61 @ 60Hz

Weight: 2.0 kg approx.

For more information on technical data, please see data sheet.
