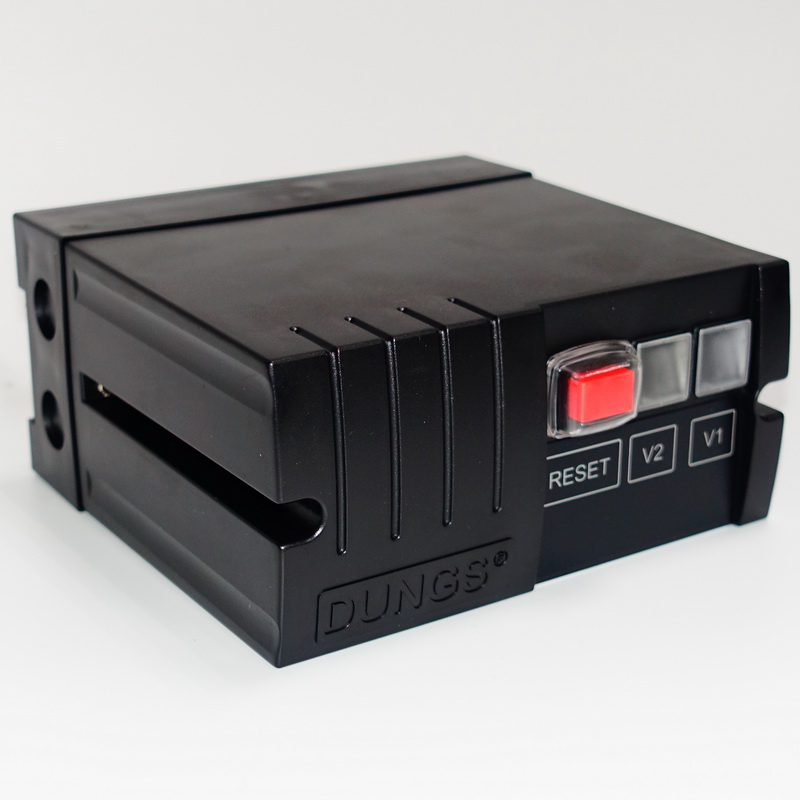

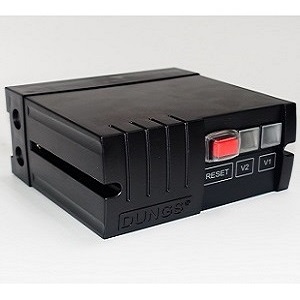

VPM-VC - Valve Proving Module

Type: VPM-VC

Application: Automatic leak testing between two solenoid valves

Voltage: 230 VAC (50/60 Hz)

Order no.: 259 696

Brand: DUNGS, Germany

Stock: Subject to availability

Price: Available on request


The VPM-VC valve test module checks the tightness of burner gas shut-off valves in combination with one or two pressure switches. The program sequence, filling and venting parameters as well as program times can be adjusted by the user according to the system requirements.


The VPM-VC has been designed for automatic leak testing between two solenoid valves in gas-consuming devices, either prior to start-up or after switching off the system. The test system can be used as a single leakage tester or in combination with automatic burners. It is used in gas burner systems for heating, process heating, process industry and gas engines.


Voltage: 230 VAC (50/60 Hz)

Power consumption: max. 10 W

Typical power consumption (operation): 5.4 W at 230 V

Type of protection: IP 42

Ambient temperature: -20 °C to +60 °C

Switch-on duration: 100 %

Test volume: Unlimited

Inlet pressure: Any; depending on pressure switch and valves

Mounting position: As desired

For more information on technical data, please see data sheet.
