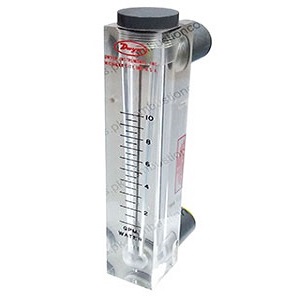

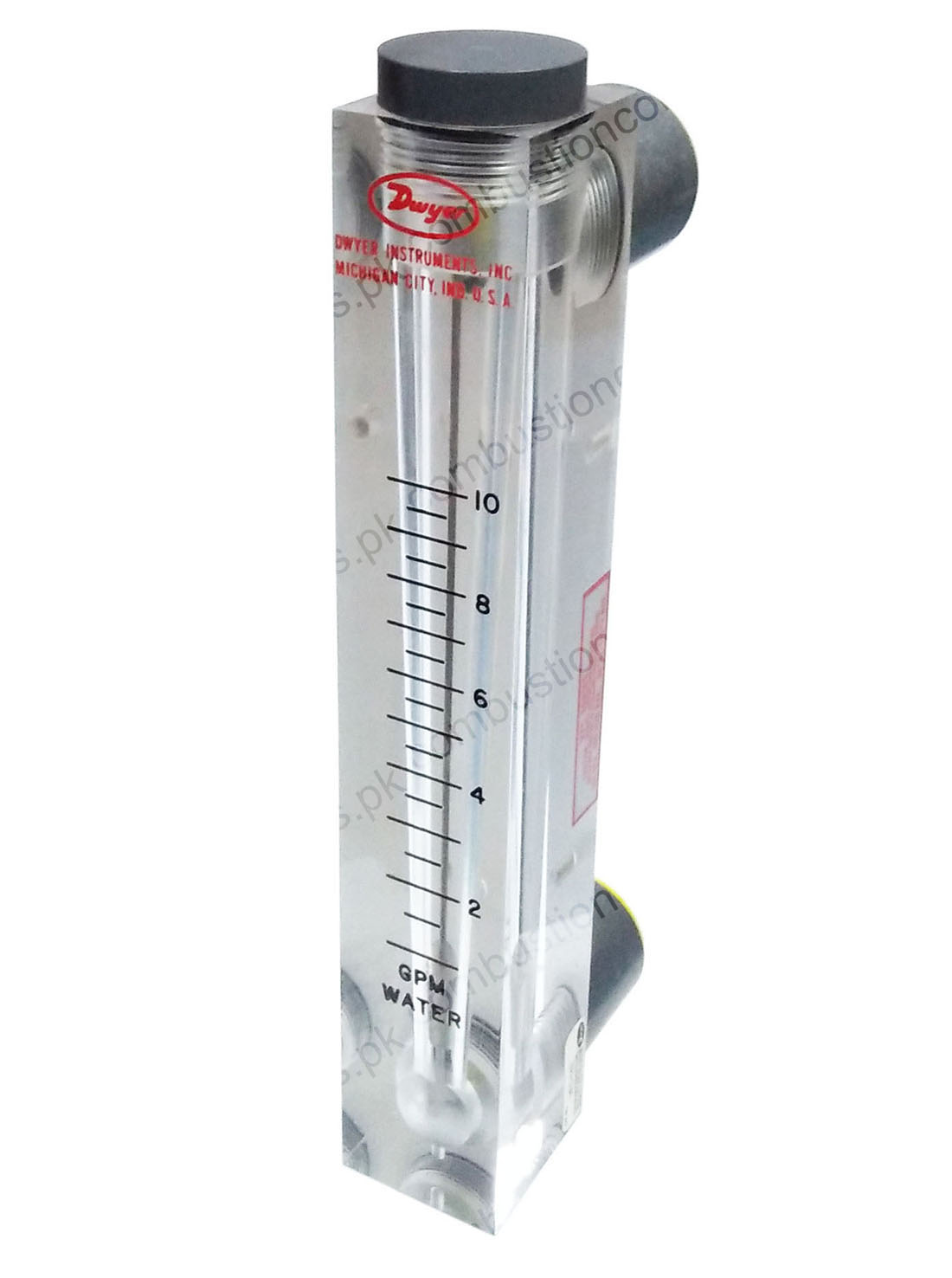

VFC-142 - Visi-FLoat® Flowmeter

Model: VFC-142

Use: For water flow indication

Range: 1-10 GPM, Water

Process connection: 1" female NPT back connections

Scale length: 5" typical length

Brand: Dwyer

Origin: Made in USA

Condition: New

Availability: 1 pc in stock

Price: Available on request

Product location: Brands > Dwyer > VFC-142

Overview

The accurate and durable VFC Visi-Float® flowmeter contains a stainless steel guide rod and large diameter float for excellent stability and visibility in high flow rates. The large 5" scale provides a ±2% full scale accuracy for precision measurement required in medical or laboratory applications. The VFC models have PVC 1" female NPT connections. All models have metal mounting inserts on the back for panel mounting. Units may also be supported directly by system piping.

































Model: VFC-142

Use: For water flow indication

Range: 1-10 GPM, Water

Process connection: 1" female NPT back connections

Scale length: 5" typical length

Accuracy: 2% of full scale

Fittings: Acetal thermoplastic

Temperature and pressure limits: 100 psig (6.9 bar) @ 120°F (48°C).

Mounting orientation: Mount in vertical position.

Weight: 0.70 kg approx.

For more information on technical data, please see data sheet.
