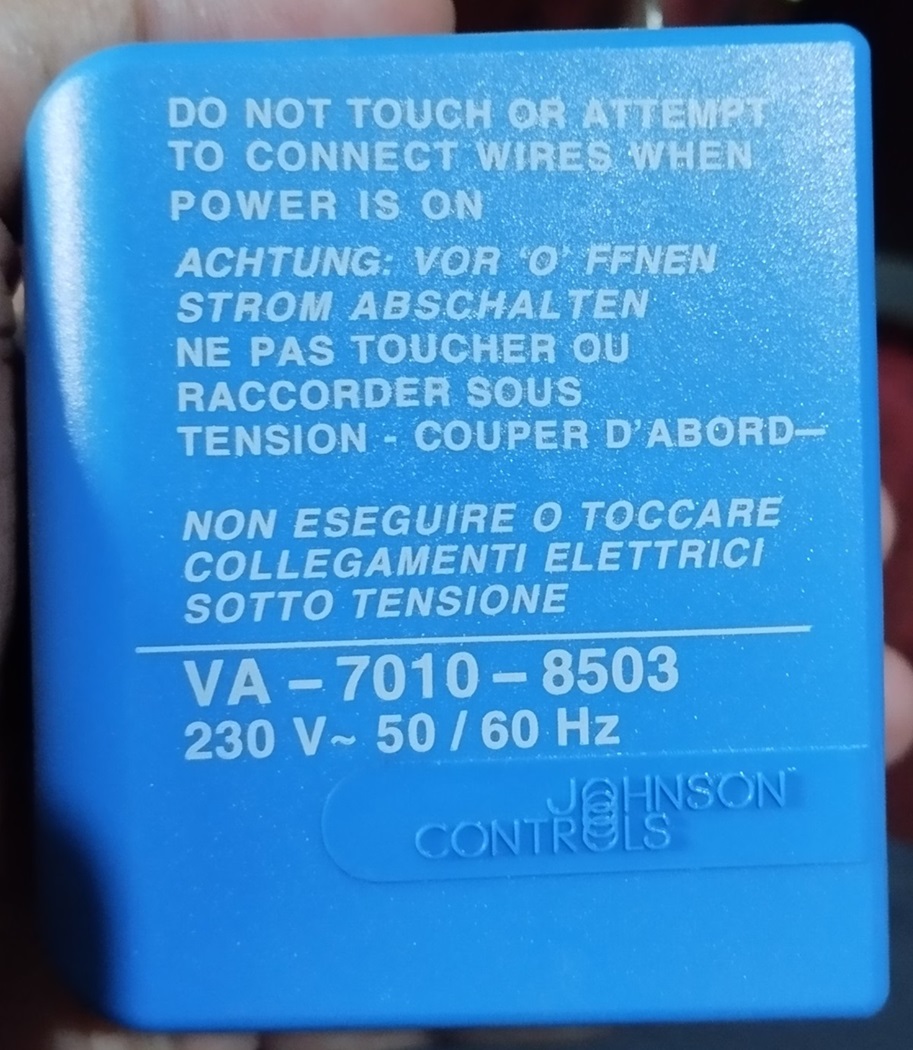

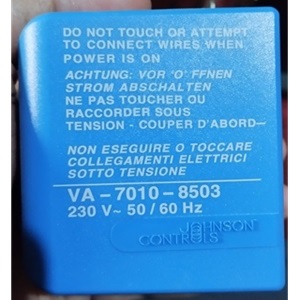

VA-7010-8503, VA-7010-8503 Johnson Controls Electric Valve Actuator On/Off 230VAC

VA-7010-8503 - Electric Valve Actuator

Type: VA-7010-8503

Power Supply: 230 VAC 50/60 Hz

Action Type: On/Off

Type of Motor: Synchronous Stall

Power Consumption: 7VA

Minimum Force: 20.2 lb (90 N)

Product Category: Actuators (Listed alphabetically)

Brand: Johnson Controls

Origin: Produc of Mexico

Condition: New - open box

Stock: 2 pieces (Subject to availability)

Price: Available on request

Location: Brands > Johnson Controls > VA-7010-8503

Note: Product pictures listed are original stock pictures.

Description - VA-7010-8503 - Electric Valve Actuator

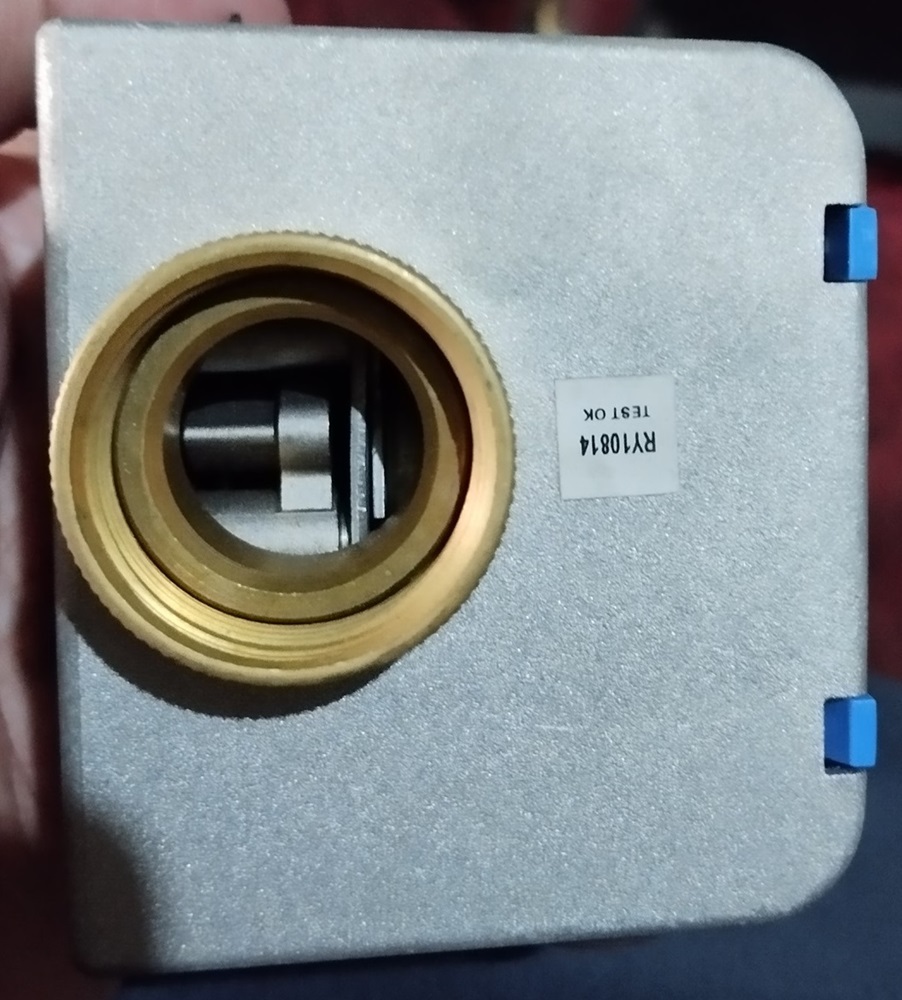

The VA-7010 Series Electric Valve Actuators provide two-position (open/closed) control and can easily be field mounted with a threaded coupling onto VG4400 2-way, VG4800 3-way and VG4500 3-way 4-port zone valves.

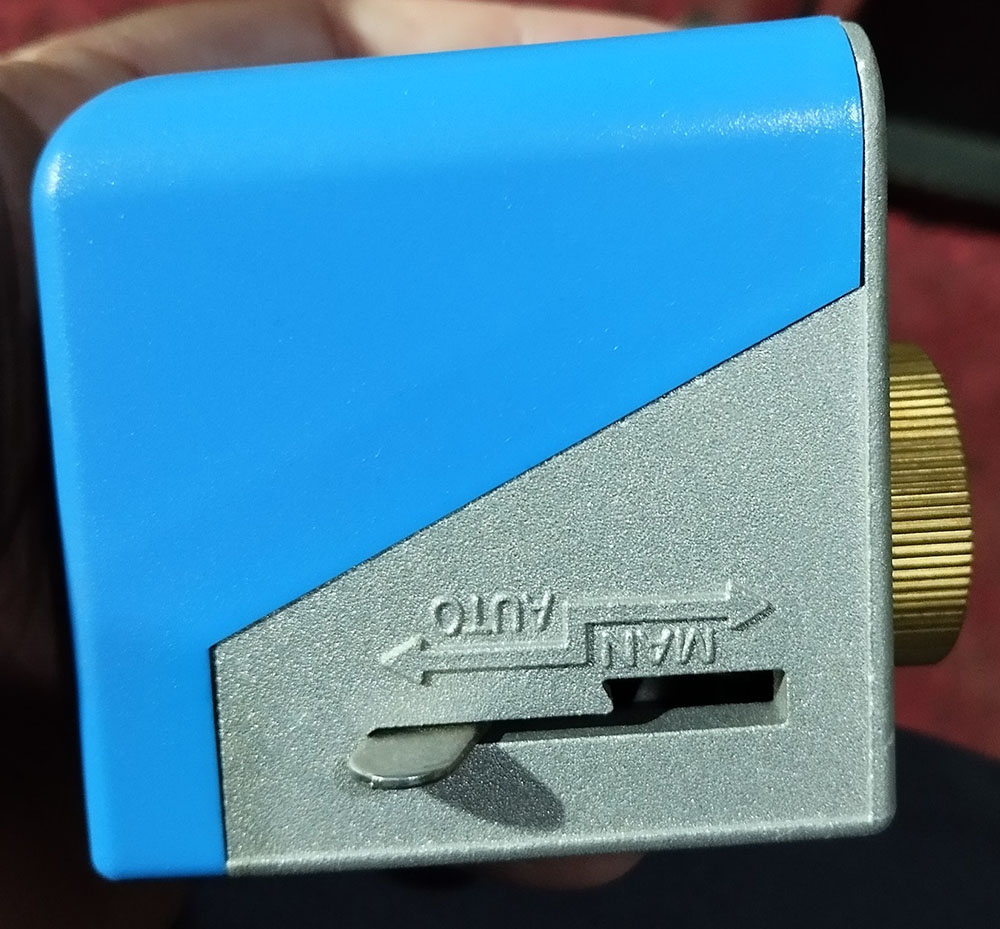

A lever at the side of the actuator housing can be used to open the mounted valve manually for servicing.

Power Supply: 230 VAC 50/60 Hz

Action Type: On/Off

Type of Motor: Synchronous Stall

Power Consumption: 7VA

Minimum Force: 20.2 lb (90 N)

Nominal Stroke: 0.12 in. (3 mm), Maximum 0.2 in. (5 mm)

Protection class: IP20

Weight: 0.5 kg

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
