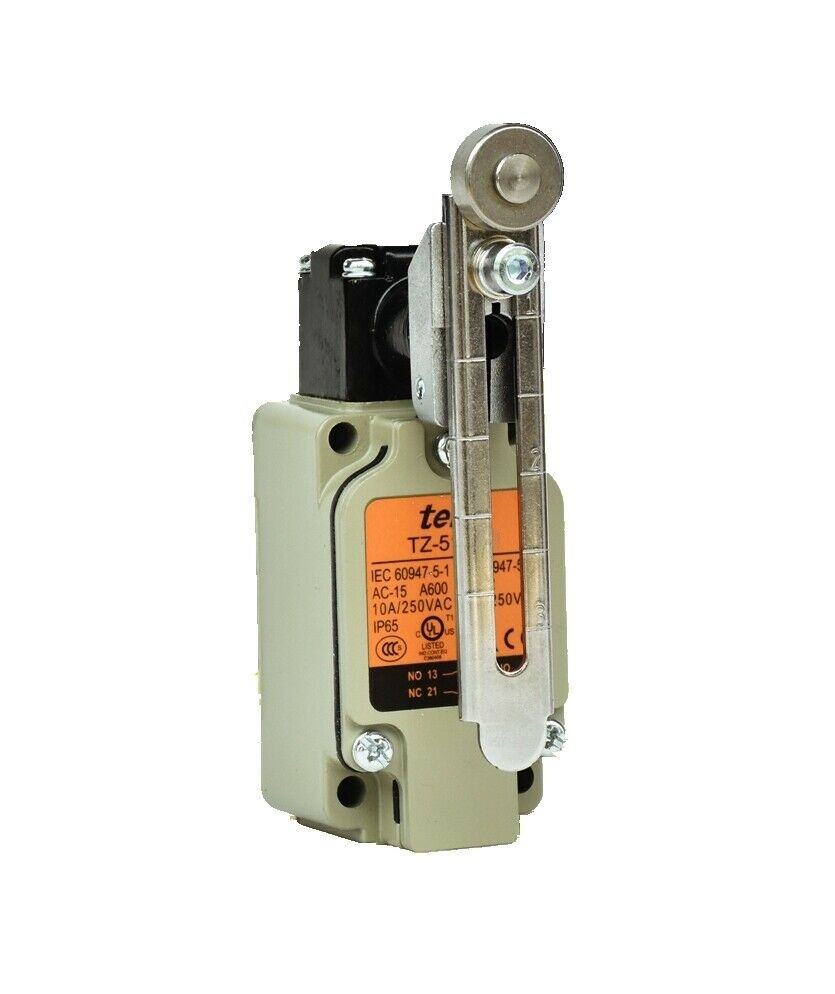

TZ-5108 - Limit Switch

Type: TZ-5108

Rated voltage: 250VAC

Actuator type: Adjustable roller lever

Operating force: 1.360 kg max.

Overtravel: 30° min.

Brand: Tend, Taiwan

Condition: New

Stock: Subject to availability

Price: Available on request

Features

  • Rigid die-cast switch housing.
  • Set position indicator plate for easy maintenance.
  • High mechanical strength.
  • Oil tight, waterproof and dust proof construction.




















    • Specifications

    Actuation: Adjustable roller lever

    Operating force (OF): 1.360 kg max.

    Releasing force (RF): 0.227 kg

    Overtravel (OT): 30° min.

    Pretravel (PT): 20° max.

    Movement differential (MD): 12° max.

    Housing material: Aluminium die-cast

    Operating temperature: -10 °C to +80 °C

    For more information on technical data, please see data sheet.





















    If you have any questions about this product please email us at saadwaheed09@gmail.com
