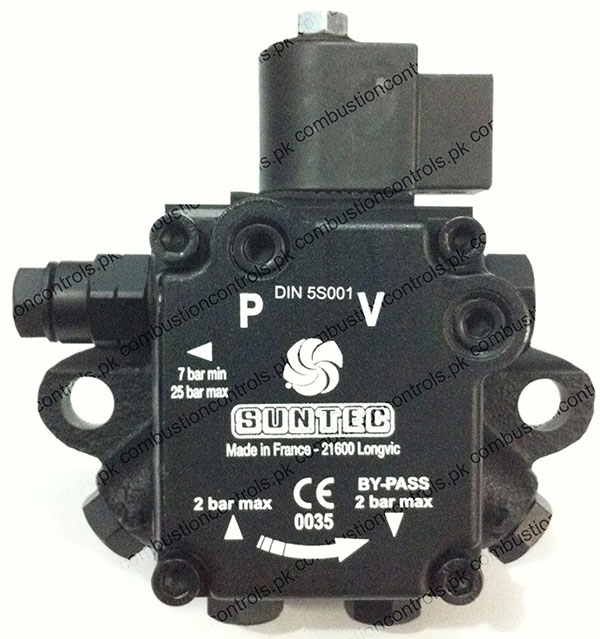

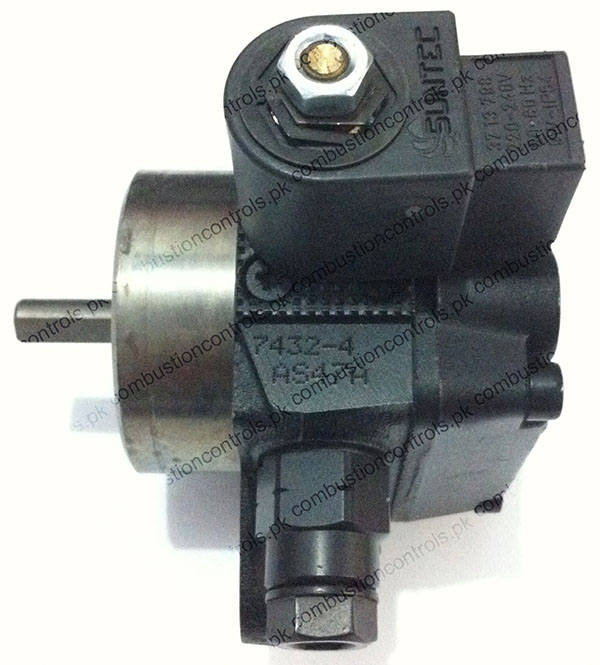

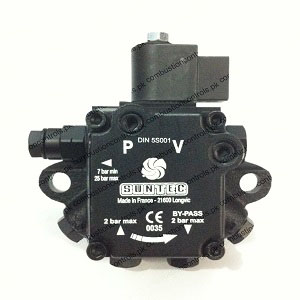

Suntec oil pump AS47A7432

Type: AS47A7432

Application: Light oil, B10 heating oil and kerosene

Rotation: Clockwise (seen from shaft end)

Condition: New

Availability: In Stock

Price: Available on request

The SUNTEC AS oil pump has a built-in solenoid valve which controls the regulator cut-off valve giving fast cut-off and cut-on function independent of the rotational speed.

Applications

– Light oil, B10 heating oil and kerosene

– One or two-pipe system

General

Mounting: Flange mounting according to EN 225.

Connection threads: Cylindrical according to ISO 228/1.

Inlet and return: G 1/4

Nozzle outlet: G 1/8

Pressure gauge port: G 1/8

Vacuum gauge port: G 1/8

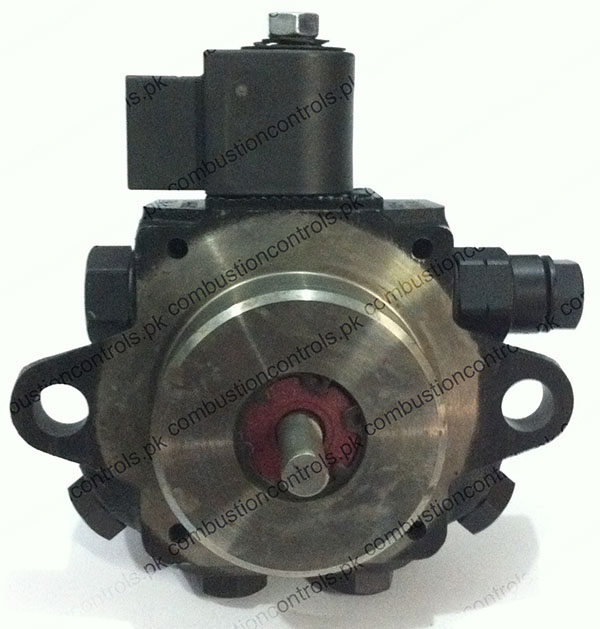

Shaft: ø 8 mm according to European standard EN 225.

By-pass plug: inserted in return port for two-pipe system; to be removed with a 4 mm Allen key for one pipe system.

Weight: 1.5 kg

Hydraulic data

Nozzle pressure range: 7 - 25 bars @ 5 cSt

Oil temperature: 0 - 60 °C in the pump

Pump capacity: 47 l/h max. @ 5 cSt

Rated speed: 3600 rpm max.

If you have any questions about this product please email us at info@combustioncontrols.pk
