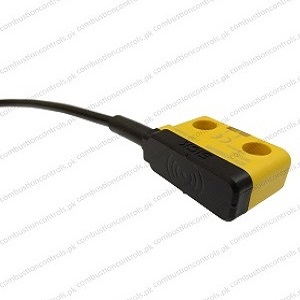

STR1-XDAM03P5 - Proximity Switch

Type: STR1-XDAM03P5

Part no.: 1073226

Sensor principle: RFID

Switch-on distance: 10 - 14 mm

Switch-off distance: 28 mm

Supply Voltage: 24 VDC

Actuator included: No

Brand: SICK

Availability: 1 piece in stock

Price: Available on request

Product category: Proximity Sensors

Product Location: Brands > SICK > STR1-XDAM03P5 (listed alphabetically)

STR1-XDAM03P5 Non-Contact Safety Switches

The STR1 RFID safety switch has monitored semiconductor outputs (OSSDs) and can be safely connected either individually or in series. It can be used for applications where a high level of manipulation protection is required. The STR1 is available with three codes. Universally coded sensors accept all actuators. An actuator must be taught into both the uniquely coded and permanently coded variants; this is the only actuator that the STR1 then accepts.

  • Small RFID safety switch for door monitoring
  • High level of flexibility when mounting the sensor
  • Less need for storage, as one sensor is suitable for a wide range of different appliations
  • Response range of up to 14 mm
  • Fast diagnosis via LED status indicator
  • Sensor activation possible from three sides
  • Safe series connection of up to 30 sensors possible


















    • Sensor principle: RFID

    Safety contacts: 2 (NO)

    Auxiliary contacts: 1

    Switch-on distance: 10 - 14 mm

    Switch-off distance: 28 mm

    Number of approach directions: 3

    Coding: Universally coded

    Supply Voltage: 24 VDC

    Cable length: 3 m, 5-wire

    Dimensions (W x H x D): 40 mm x 18 mm x 26 mm

    Ambient operating temperature: -30 ... +70 °C

    For more information on technical data, please see data sheet.





















    If you have any questions about this product please email us at saadwaheed09@gmail.com
