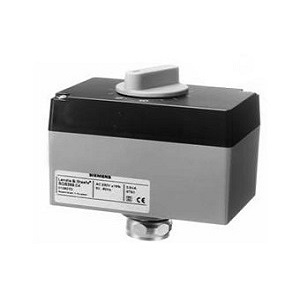

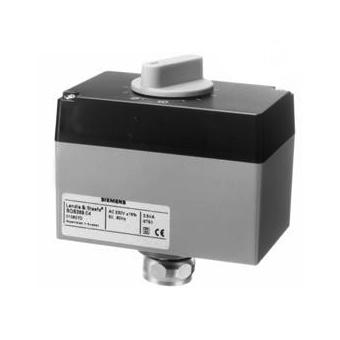

SQS859.00 - Siemens Electromotoric Actuator

Type: SQS859.00

Operating voltage: AC 24 V

Positioning signal: 3-position

Positioning time: 150 s

Stroke: 5.5 mm

Spring return function: No

Brand: Siemens

Country of origin: Sweden

Condition: Used (pictures available on request)

Availability: 1 pc in stock

Price: Available on request

Product location: Products > Actuators > SQS859.00

SQS859.00
  • Operating voltage AC 24 V
  • 3-position control signal
  • Positioning force 400 N
  • Direct mounting on valves; no adjustments required
  • Optional auxiliary switch for extra functions with SQS859.00
  • Without spring return function
  • Position indication
  • With manual adjuster
    • Use

    For operation of Siemens valves VVG549..., VVP459..., and VXP459..., VVG44... and VXG44... with 5.5 mm stroke for water-side control of hot water and cooling water in heating, ventilation and air conditioning systems.

    In conjunction with the ASK30 mounting kit, the former Landis & Gyr valves with 4 mm or 5.5 mm stroke can also be operated: X3i.., VVG45.., VXG45.., VXG46.., VVI51...























    Technical data - SQS859.00

    Operating voltage: 24 VAC

    Frequency: 50 Hz

    Power consumption: 2 VA

    Positioning signal: 3-position

    Positioning time: 150 s

    Stroke: 5.5 mm

    Spring return function: No

    Manual adjuster: Yes

    Auxiliary switch: Not included

    Weight: approx. 0.5 kg

    For more information on technical data, please see data sheet.
