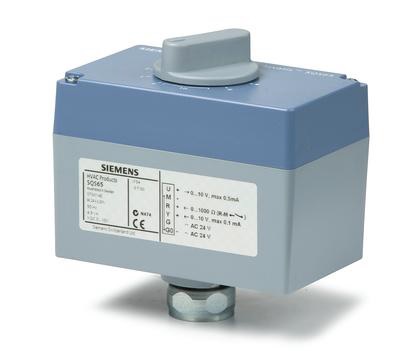

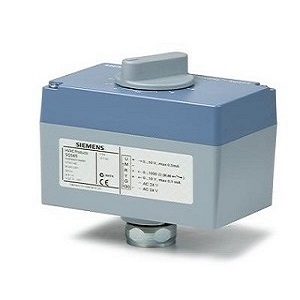

SQS85.00 - Siemens Electromotoric Actuator

Type: SQS85.00

Operating voltage: 24 VAC

Positioning signal: 3-position

Positioning time: 150 s

Stroke: 5.5 mm

Spring return function: No

Brand: Siemens, Germany

Condition: Used

Availability: 1 pc in stock

Price: Available on request

SQS85.00
  • For valves with 5.5 mm stroke
  • 3-position control signal
  • Positioning force 400 N
  • Direct mounting on valves; no adjustments required
  • Without spring return function
  • Position indication
  • Manual adjuster on actuators without spring return function
    • Use

    For operation of Siemens valves VVG44.., VVG55.. and VXG44.. with 5.5 mm stroke for water-side control of hot water and cooling water in heating, ventilation and air conditioning systems.

    In conjunction with the ASK30 mounting kit, the former Landis & Gyr valves with 4 mm or 5.5 mm stroke can also be operated: X3i.., VVG45.., VXG45.., VXG46.., VVI51...























    Technical data - SQS85.00

    Operating voltage: 24 VAC

    Frequency: 50/60 Hz

    Power consumption: 2 VA

    Positioning signal: 3-position

    Positioning time: 150 s

    Stroke: 5.5 mm

    Spring return function: No

    Manual adjuster: Yes

    Auxiliary switch: Not included

    Type of motor: synchronous motor

    Weight: approx. 600 g

    For more information on technical data, please see data sheet.


















    If you have any questions about this product please email us at saadwaheed09@gmail.com
