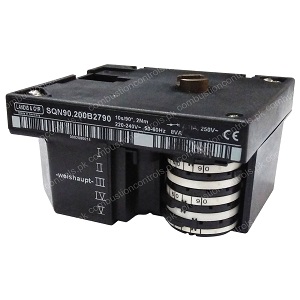

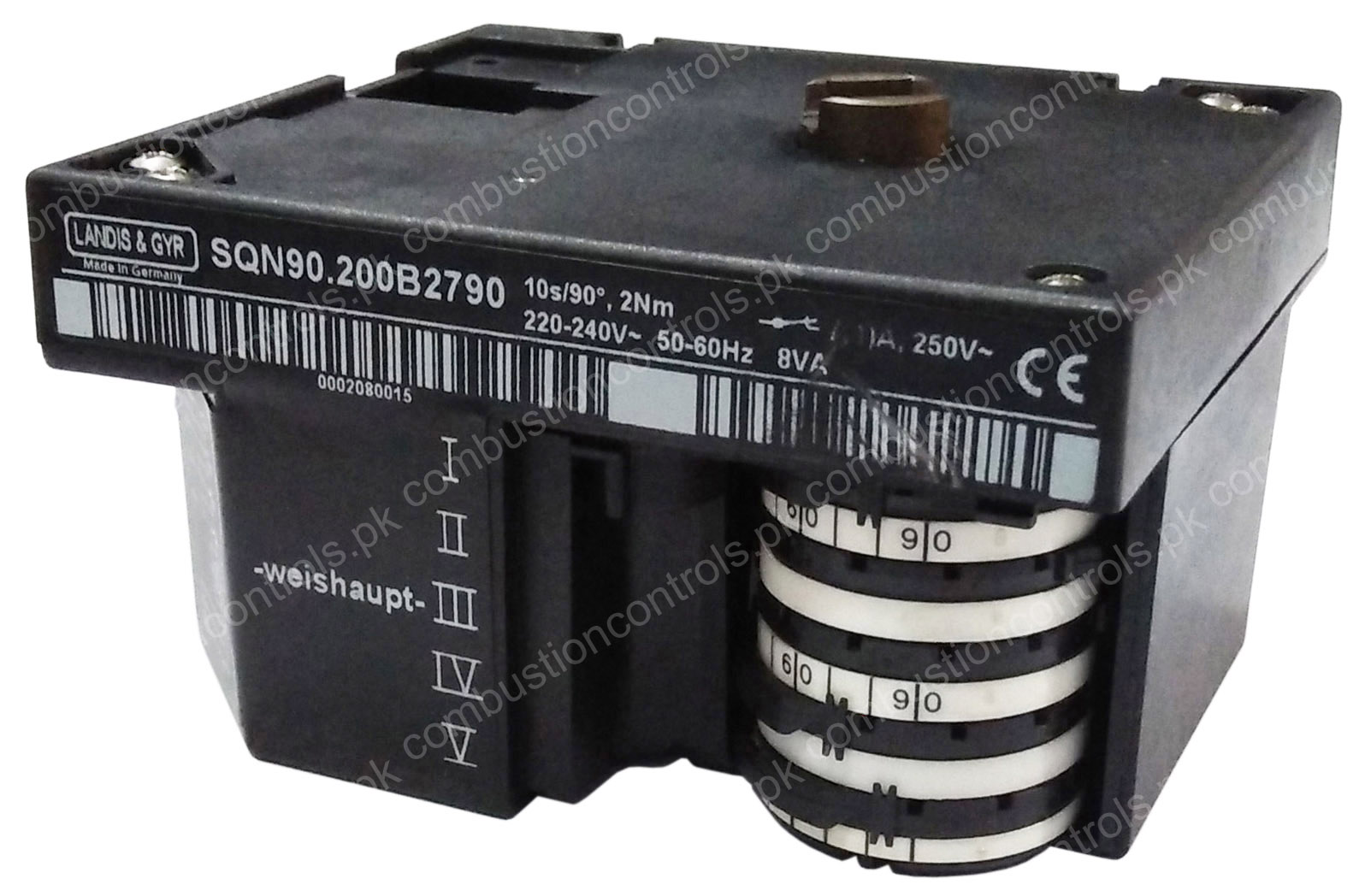

SQN90.200B2790 - Damper Actuator

Type: SQN90.200B2790

Application: Air dampers and valves of oil or gas burners

Voltage: 220-240VAC 50-60Hz

Running time: 10s for 90°

Brand: Landis & Gyr

Origin: Germany

Condition: Used

Stock: Subject to availability

Price: Available on request

Reversible electromotoric actuator for air dampers and valves of oil or gas burners of small to medium capacity.























Voltage: 220-240VAC 50-60Hz

Running time: 10s for 90°

Direction of rotation: Counter-clockwise

Holding torque: 2 Nm

Power consumption: 8 VA

Angular adjustment: Max. 90°, scale range 0...90°

Mounting position: optional

Weight: Approx. 550 g

For more technical information, please refer to data sheet.
