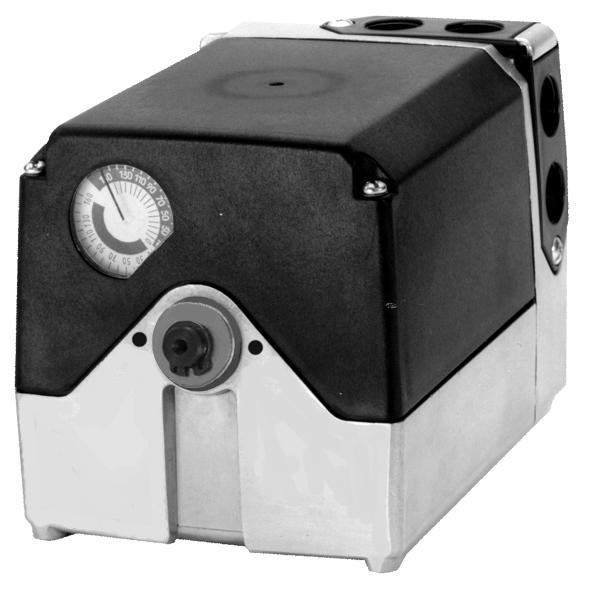

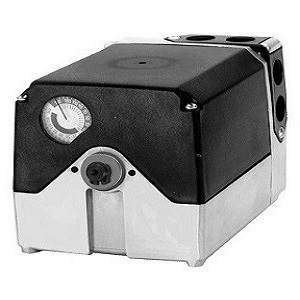

SQM56.687A2G3 - Actuator

Type: SQM56.687A2G3

Voltage: 220-240V~ 50/60Hz

Holding torque: 40 Nm

Running time: 60 seconds

Angular rotation: 90°

Brand: Siemens

Origin: Germany

Condition: Used (pictures available on request)

Stock: Subject to availability

Price: Available on request

Use

The SQM5... actuators are designed to drive air and gas dampers. Areas of application are oil and gas burners of medium to larger capacity.

The actuators are used primarily for the load-dependent control of the gas flow, oil volume and combustion air volume:

- In connection with 3-position or modulating controllers (e.g. 4...20 mA), and/or

- Directly by burner controls























Voltage: 220-240 VAC 50/60Hz

Holding torque: 40 Nm

Running time: 60 sec

Angular rotation: 90°

Auxiliary switches: 8

Type of shaft (Article no.): AGA58.7

Power consumption: 20 VA

Mounting position: optional

Degree of protection: IP54

Weight: Approx. 3.3 kg

Temperature of the mounting surface: Max. 60 °C

For more technical information, please refer to data sheet.




















If you have any questions about this product please email us at saadwaheed09@gmail.com
