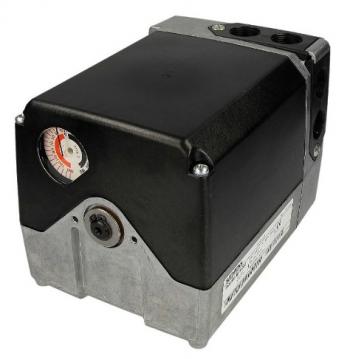

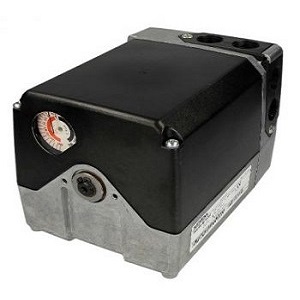

SQM50.480A8 - Actuator without shaft, 24V~

Type: SQM50.480A8

Voltage: 24V~ 50/60Hz

Holding torque: 15 Nm

Running time: 34s

Angular rotation: 90°

Brand: Siemens

Origin: Germany

Stock: Subject to availability

Price: Available on request

The SQM5... actuators are designed to drive air and gas dampers. Areas of application are oil and gas burners of medium to larger capacity.

The actuators are used primarily for the load-dependent control of the gas flow, oil volume and combustion air volume:

- In connection with 3-position or modulating controllers (e.g. 4...20 mA), and/or

- Directly by burner controls























Voltage: AC24V 50/60Hz

Holding torque: 15 Nm

Running time: 34s

Angular rotation: 90°

Auxiliary switches: 8

Drive shaft: Without

Power consumption: 20 VA

Mounting position: optional

Degree of protection: IP54

Weight: Approx. 3.3 kg

Temperature of the mounting surface: Max. 60 °C

For more technical information, please refer to data sheet.
