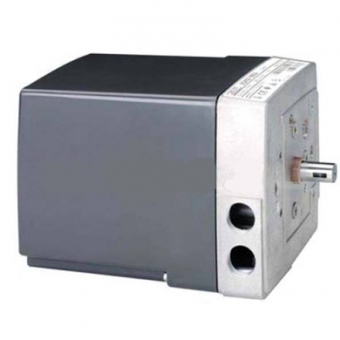

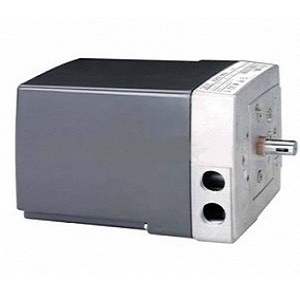

SQM10.16562 - Air Damper Actuator

Type: SQM10.16562

Voltage: 220-240 VAC 50-60 Hz

Torque: Up to 10 Nm

Running time: 42s for 130°

Potentiometer: ASZ12.733

Brand: Landis & Gyr

Origin: Germany

Condition: Lotted

Pictures: Stock pictures are available on request

Stock: Subject to availability

Price: On request

The reversible actuators of the SQM... range are for use in connection with controllers or switching devices equipped with changeover contacts.





























General unit data

Mains voltage: 220/240 VAC 50/60 Hz

Running time: 42s for 130°

Nominal torque: 10 Nm

Type of motor: Synchronous

Power consumption: 9 VA

Weight: approx. 1.7 kg

Mounting position: Optional


























If you have any questions about this product please email us at saadwaheed09@gmail.com
