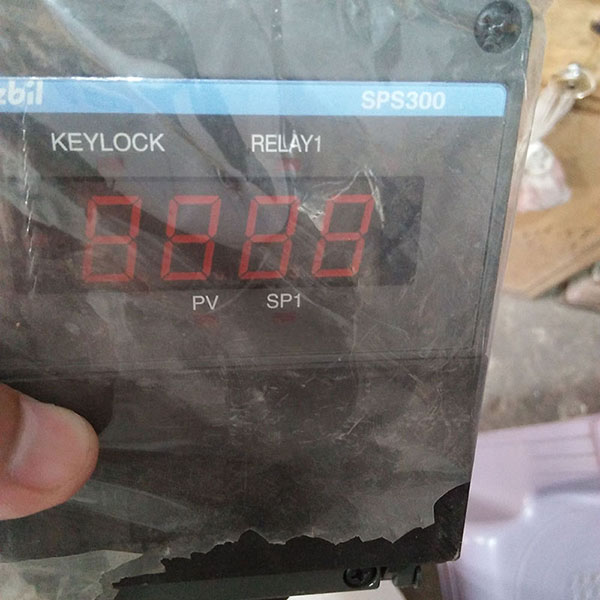

SPS300A - Pressure Sensor & Switch

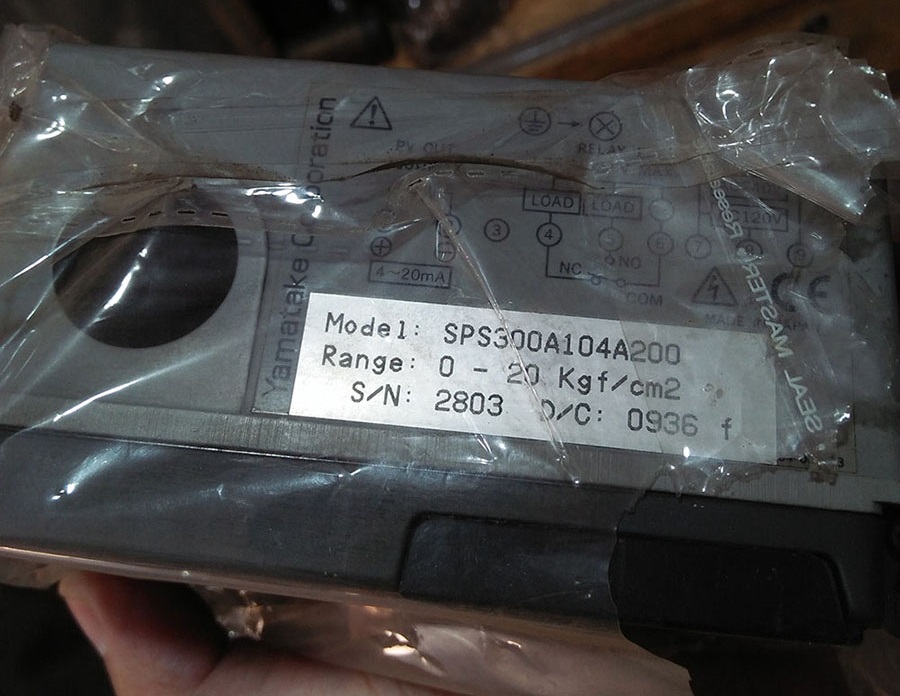

Type: SPS300A104A200

Applicable fluids: Gas and liquid

Measurement range: 0 - 20 kgf/cm²

Output: 4 - 20 mA, SPDT

Power supply: 120/240 VAC 50/60 Hz

Brand: Azbil (Yamatake Corporation)

Stock: Subject to availability

Price: Available on request

Product location: Products > Pressure Sensors > SPS300A

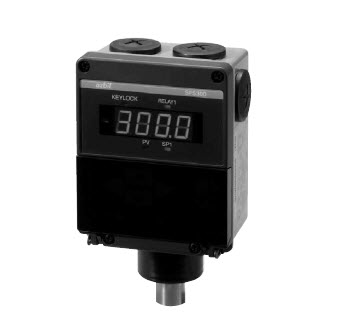

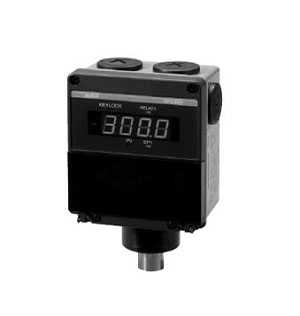

SPS300A/B Intelligent Pressure Sensor and Switch

The SPS300A and SPS300B intelligent pressure sensor and switch are microprocessor based high accuracy and high function digital pressure detectors. A liquid filled dual diaphragm (SUS316L) and semiconductor based pressure sensing elements are incorporated into the pressure detection unit. These detectors are used for gauge pressure measurement. The SPS300A offers current output and relay contacts and the SPS300B offers two-stage relay contact (independent) outputs.




























Applicable fluids: Gas and liquid, except for fluids that will corrode the pressure receiving material (SUS316L).

Fluid temperature: -20 ... +60 °C

Measurement range: 0 - 20 kgf/cm²

Pressure sensing element: Piezoresistive silicon

Output type: Current value 4 - 20 mA, relay contact (SPDT)

Rated power supply: 120/240 VAC 50/60 Hz

Power consumption: 7 W max.

Weight: Approx. 1.1 kg

For more information on technical data, please see data sheet.























If you have any questions about this product please email us at saadwaheed09@gmail.com
