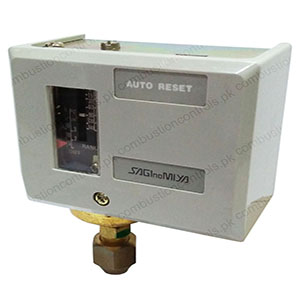

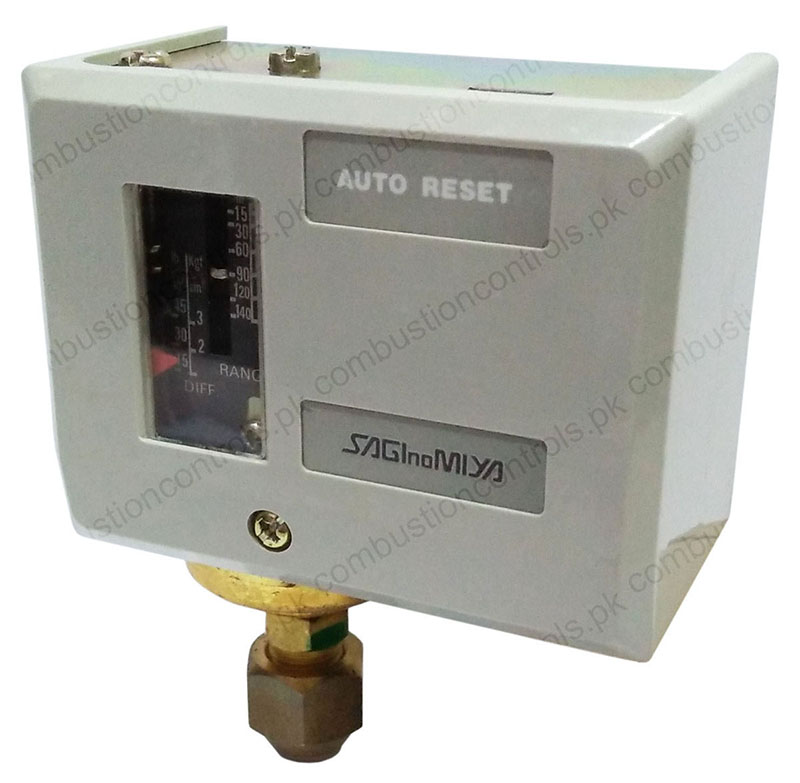

SNS-C110X - Pressure Control

Catalog No.: SNS-C110X

Range: 1 - 10 kgf/cm² (0.1 - 1 MPa)

Differential: 1 - 3 kgf/cm²

Max. working pressure: 15 kgf/cm²

Reset type: Automatic reset

Brand: Saginomiya, Japan

Condition: New

Quantity available in stock: 1 pc

Price: Available on request

Product category: Pressure Switches (listed alphabetically)

Description
  • For use with flourinated refrigerants as well as with air and water.
  • Allowable fluid temperature -20 to +120 °C
  • Type SNS for universal application.
  • Type HNS for high pressure safety cut out.
  • Mounting bracket is supplied as standard.
  • With SPDT contact mechanism.






















    • Catalog No.: SNS-C110X

    Range: 1 - 10 kgf/cm² (0.1 - 1 MPa)

    Differential: 1 - 3 kgf/cm²

    Max. working pressure: 15 kgf/cm²

    Reset type: Automatic reset

    Pressure connection: 1/4" flare

    Allowable fluid temperature: -20 to +120 °C

    Weight: 0.33 kg

    For more information on technical data, please see data sheet.




















    If you have any questions about this product please email us at saadwaheed09@gmail.com
