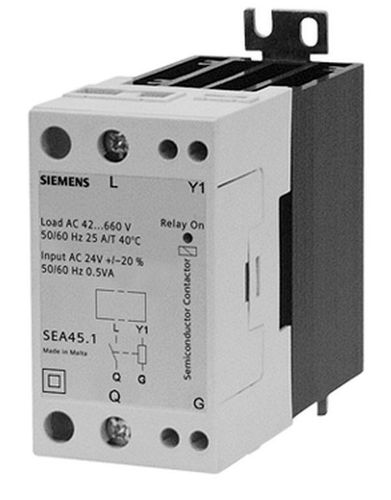

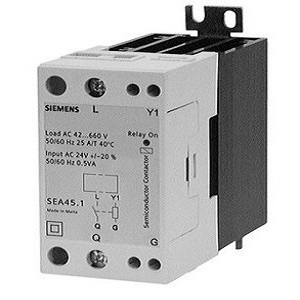

SEA45.1 - Siemens Current Valve

Type: SEA45.1

Operating voltage: AC 24 V

Positioning signal: AC 24 V (pulse / pause)

Mains voltage (load side): AC 42...660 V

Condition: New

Availability: In Stock

Price: Available on request

Current Valve SEA45.1

The current valve is used for the control of electric heating elements in heating, ventilation and air conditioning plant, e.g.:

• Electric heating coils

• Fan coil units

• Induction units

• Electric radiators

• Electric underfloor and ceiling heating systems

• Reheaters in fan coil units and supply sir ducts

• Convector heaters and panel heating


The current valve is a solid-state power switch (thyristor). It regulates the amount of electrical energy supplied to the connected heating element.


Control voltage (Terminal G, Y1): SELV / PELV AC 24 V ±20 %

Frequency: 50/60 Hz

Power consumption (AC 24 V): 0.5 VA

Control signal voltage (pulse/pause): AC 24 V

Mains voltage, load side (terminal L, Q): AC 42...660 V

Dimensions (W x H x D): 45 x 103 x 103 mm

Please refer to data sheet for more technical information.

If you have any questions about this product please email us at saadwaheed09@gmail.com
