Overview

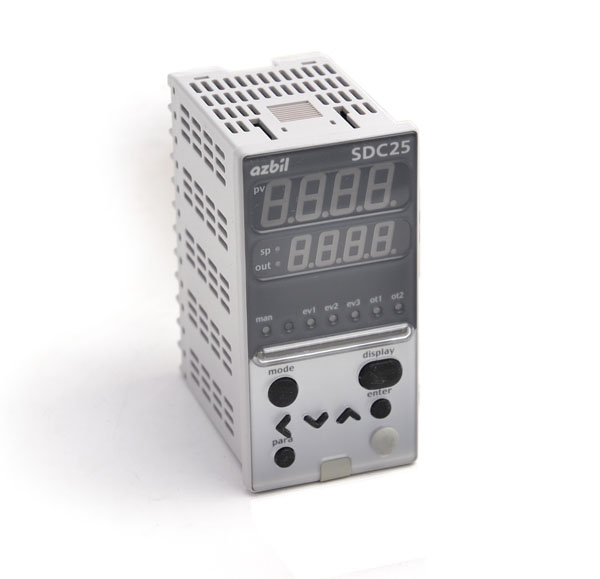

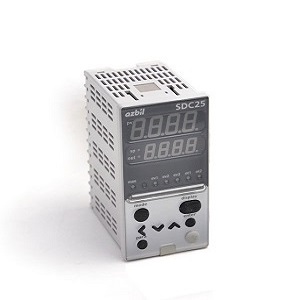

The DigitroniK SDC25/26 is a digital indicating controller featuring multi-range inputs and PID control system using new algorithms "RationaLOOP" and "Just-FiTTER". Up to two control output points (this number of points may vary depending on the model) can be used, which are selectable from the relay contact, voltage pulse, and current. The smart loader package ensures easy setting operation and monitoring.
This controller is compliant to the IEC directives and the CE marking.
Features
Space saving design with a depth of 65mm. The mask of the front panel is also only 5mm thick.
High accuracy of ±0.3 %FS and sampling cycle of 0.3 seconds.
Multi-range inputs are available for selection, where the input type can be freely changed among thermocouple, RTD, current, and voltage.
The control method can be selected from any of the ON/OFF control and PID control using "RationaLOOP" + "Just-FiTTER".
The heat/cool control can be achieved using two control output points and event outputs.
The PC loader port is provided as a standard function.
The control output types available for selection are relay, voltage pulse, and current outputs. The heat/cool control can be achieved by interfacing with the 2nd control output in combination with these outputs.
Event 3 points or 2 points (independent contact), CT input 2 points, DI 4 points, and RS-485 can be selected in combination.
The smart loader package (SLP-C35) can be used.
Power supply: 100-240VAC 50/60 Hz
Input type: Thermocouple, RTD, DC current and DC voltage
Input sampling time: 0.3 s
Number of setting points: Max. 4 points
Output type: 0 to 20 mAdc or 4 to 20 mA
Power consumption: MAx. 12 VA
Ambient temperature: 0...+50 °C
Weight: Approx 250 g
For more information on technical data, please see data sheet.
