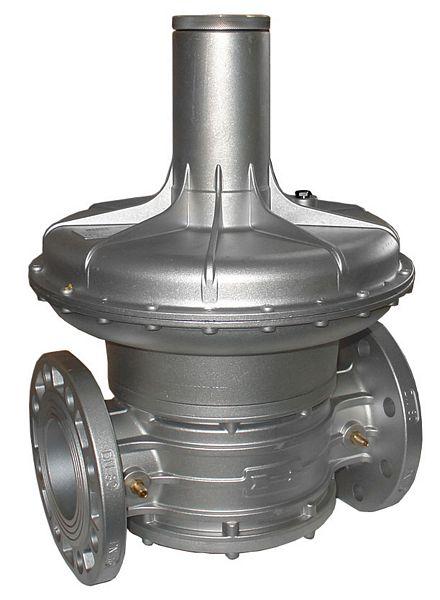

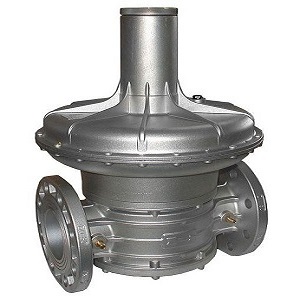

RG/2MC DN80 - Madas Gas Regulator

Type: RG/2MC

Flanged connections (PN16): DN 80

Max. operating pressure: 0.5 - 1 bar

Outlet pressure range: 200 - 600 mbar

Brand: Madas

Origin: Italy

Stock: Subject to availability

Price: Available on request

Gas pressure closing regulator (RG/2MC).

Reference standard EN 88-1.

In conformity with:

- 2009/142/EC Gas Directive

- Regulation (EU) 2016/426 from 21/04/2018































Technical data

Flanged connections (PN16): DN 80

Maximum operating pressure (Pe): 0.5 - 1 bar

Outlet pressure range (Pa): 200 - 600 mbar

Use: Not aggressive gases of the 3 families (dry gases)

Environment temperature: -15 °C to +60 °C

Material: Die-cast aluminium

Weight: 15kg

Packing dimensions: 42.5 x 36 x 48.5 (cm)

For more information on technical data, please see data sheet.

























If you have any questions about this product please email us at saadwaheed09@gmail.com
