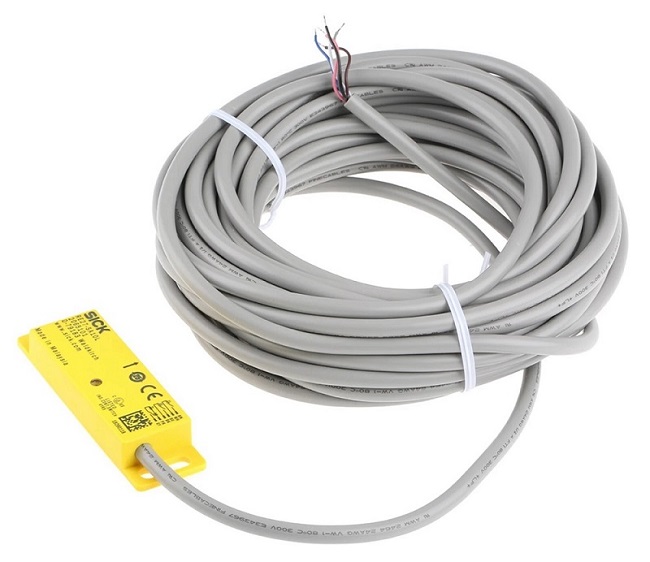

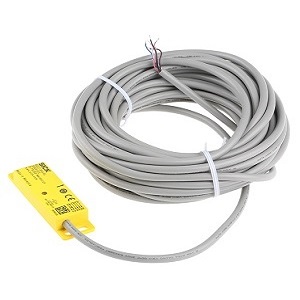

SICK RE1 & RE2 Series of Non-Contact Safety Switches
RE1 & RE2 magnetic safety switches are equipped with NC/NO contacts or equivalent N/O contacts which are treated directly with coded magnetic actuators. These types of safety system switches are particularly useful in areas where there may be a high level of contamination (these units are simple to clean and keep high hygiene standards).
Features and Benefits
Response range from 7-9 mm.
Magnetic sensor principle.
Built-in LED response indicator.
Glass-fibre reinforced PPS rectangular housing.
High tolerances for door misalignment.
Enclosure rating IP67 (IEC 60529).
Typical applications
The RE1 & RE2 series are compatible anywhere where a high standard of hygiene is necessary for operations. Typically, you'll find these types of safety switches where precise guidance of a safety door isn't always possible.
Monitoring of safety doors & removable guards.
Applications requiring a high standard of hygiene.
Sensor Principle: Magnetic
Number of N/O contacts: 2
Number of signaling contacts: 1
Switching Distance: 9 mm
Switch-off Distance: 20 mm
Number of approach directions: 3
Supply Voltage: 30 VDC
Cable Length: 10 m
Part no.: 2065101
Dimensions (W x H x D): 25 mm x 88 mm x 13 mm
Ambient operating temperature: -30° ... +60°C
For more information on technical data, please see data sheet.
