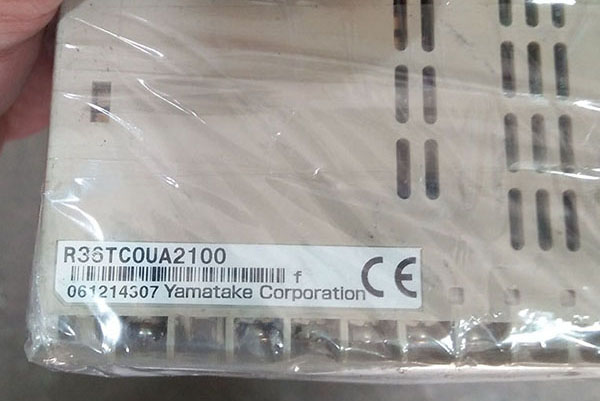

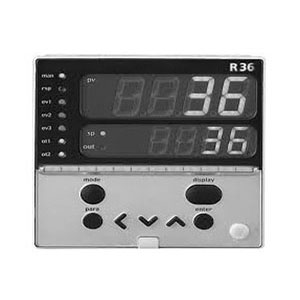

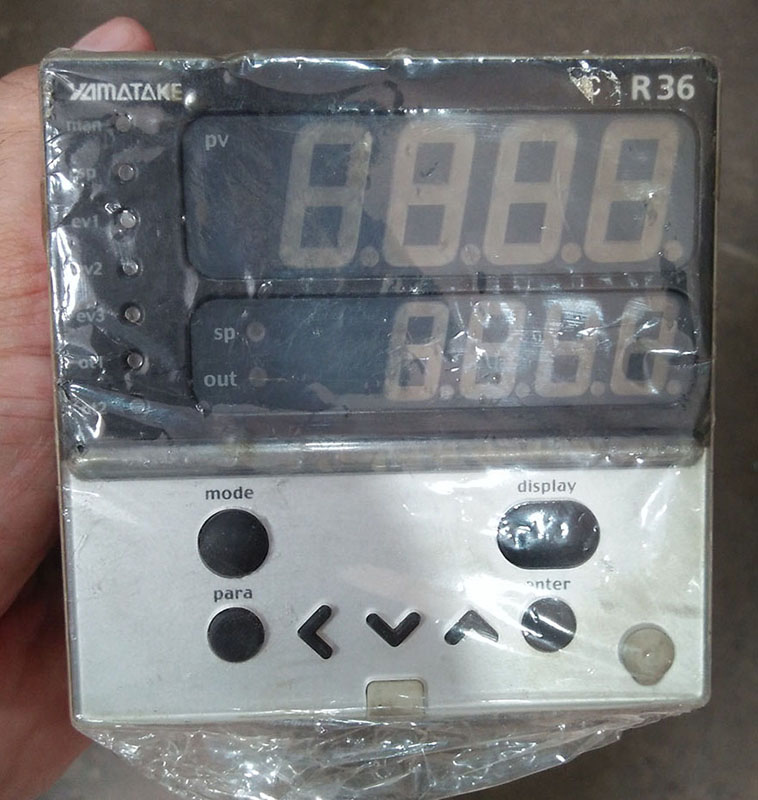

R36 - Single Loop Controller

Type: R36TC0UA2100

Power supply: 100-240VAC 50/60 Hz

Input type: RTD, DC current, DC voltage

Output type: 0 to 20 mAdc or 4 to 20 mA

Mask size: 96 mm x 96 mm

Brand: Yamatake

Stock: Subject to availability

Price: Available on request

Product location: Brands > Yamatake > R36

Overview

Model R35/R36 is a digital indicating controller featuring multi-range inputs and PID control system using new algorithms "RationaLOOP PID (Ra-PID)" and "Just-FiTTER". Up to two control output points (this number of points may vary depending on the model) can be used, which are selectable from the relay contact, motor drive relay, and current.




























Power supply: 100-240VAC 50/60 Hz

Input type: RTD, DC current and DC voltage

Input sampling time: 0.1 s

Control output (C0): Current output

Mask size: 96 mm x 96 mm

Mounting: Panel mounting type

Ambient temperature: 0...+50 °C

Weight: Approx. 300 g

For more information on technical data, please see data sheet.























If you have any questions about this product please email us at saadwaheed09@gmail.com
