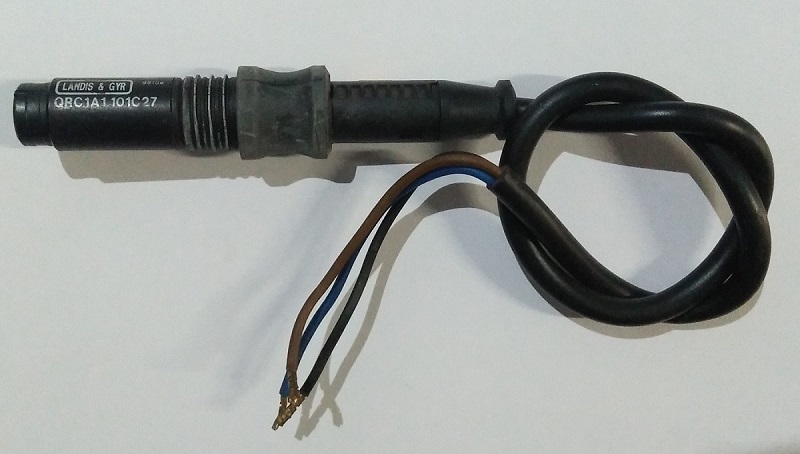

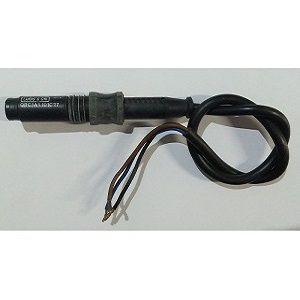

QRC1A1.101C27 - Blue-flame Detector

Type: QRC1A1.101C27

For use with: LAL1..., LGB3..., LME23..., LMO14..., LMO24..., LMO44..., LMO54..., LMV26..., LMV27..., LMV36..., LMV37..., LOA2... (except LOA25...), LOA3...

Mains voltage: AC 230V 50/60Hz

Direction of illumination: Frontal

Viewing window: Plexiglas

Brand: Landis & Gyr

Origin: Germany

Quantity in stock: 1 piece

Price: Available on request

QRC1...

Blue-flame detectors for the supervision of blue- or yellow-burning oil or gas flames. Blue-flame detectors are used primarily in connection eith burner controls for small-capacity burners in intermittent operation.

Use

The QRC1... is a compact UV-sensitive blue-flame detector with an integrated preamplifier. It is designed for frontal and lateral (90°) illumination.

QRC1... is suited for use with following burner controls and with photoresistive detectors QRB1... - in terms of plug-in facility:

  • LAL1...
  • LGB3...
  • LME23...
  • LMO14..., LMO24..., LMO44...
  • LMO54...
  • LMV26...
  • LMV27...
  • LMV36...
  • LMV37...
  • LOA2... (except LOA25...), LOA3...
  • The QRC1... must not detect UV radiation from ignition sparks, as otherwise lockout occurs during the prepurge time, due to extraneous light.



























    For use with: LAL1..., LGB3..., LME23..., LMO14..., LMO24..., LMO44..., LMO54..., LMV26..., LMV27..., LMV36..., LMV37..., LOA2... (except LOA25...), LOA3...

    Mains voltage: AC 230V 50/60Hz

    Class of sensitivity: Normal

    Direction of illumination: Frontal

    Viewing window: Plexiglas

    Degree of protection: IP 40

    Weight: approx. 0.029 kg

    Mounting position: Optional

    Temperature range: -20...+60 °C

    Humidity: < 95 % r.h.

    For more technical information, please see data sheet.






















    If you have any questions about this product please email us at saadwaheed09@gmail.com
