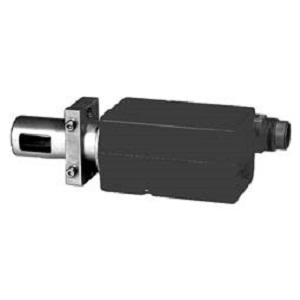

QRA55.C17 - UV Flame Detector

Type: QRA55.C17

For use with: LGK16..., LGI16...

Mains voltage: AC 100...110 V

Condition: Used

Brand: Landis and Gyr

Origin: Germany

Clamp for mounting: Ordered separately

Price and picture is available on request.

Application

The flame detectors are used for the supervision of gas flames, yellow- or blue-burning oil flames and for ignition spark proving.

Function

With this type of flame supervision, the UV radiation emitted by gas or oil flames is used to generate the flame signal.

The radiation detector consists of a UV-sensitive cell with 2 electrodes, which ignite when illuminated with radiation in the 190...270 nm range of the spectrum, thereby triggering a current in the flame detector circuit.

The UV cell does not respond to glowing firebrick in the combustion chamber, daylight or light from the boiler room illumination.

Higher ambient temperatures reduce considerably the cell's life.

Mechanical Design

Plastic housing, metalized to prevent static charging caused by the air flow from the fan. For direct mounting on the burner. The detectors can be supplied with or without securing flange and clamp (refer to «Type summary»).



























For use with burner controls: LGK16..., LGI16...

Operating mode: Continuous

Senstivity: Normal

Detector tube length: 69mm

Mains voltage: AC 100...110 V

Degree of protection: IP 54

Mounting position: optional

Weight: approx. 600 g

Temperature range: -20...+60 °C

Humidity: < 95 % r.h.

For more technical information, please see data sheet.






















If you have any questions about this product please email us at saadwaheed09@gmail.com
